Stability & Flocculation Analysis
Oxygen Content
Elemental Analysis
SPECTROIL OIL & FUEL ELEMENTAL ANALYSIS SPECTROMETER
SPECTROIL OIL & FUEL ELEMENTAL ANALYSIS SPECTROMETER Image

Spectroil Series are easy to use, reliable and the workhorses of commercial and military oil analysis laboratories that require the rapid analysis of wear metals, contaminants and additives in lubricants. It measures trace quantities of elements dissolved or suspended as fine particles in natural or synthetic petroleum based products using the time-tested and reliable rotating disc electrode (RDE) technique.

The Spectroil is the ideal spectrometer for the in-service oil analysis laboratory because technology has made it smaller and the addition of an innovative CCD optical system has made it more flexible for even the most exotic in-service oil analysis applications. The standard configuration is equipped and calibrated for 22 wear metals, contaminants and additives. Additional elements can be added at any time, even in the field and if your application suddenly calls for unusual elements such as niobium, lithium or rhodium. An external computer with current Windows software controls the system. The additional capability to analyze engine coolants is available as an option.

  • Provides an early warning of abnormal wear
  • Conforms to ASTM Standard Test Method D6595 & D6792 requirements
  • No sample preparation
  • 30 second analysis time
  • Bench-top and transportable
  • Analyzes all elements simultaneously
  • Always ready to analyze samples
  • Simple to operate without special training or background
  • Standard and readily available consumables
  • Requires no special utilities or gases, only AC power
Particle Count & Shape Imaging
LNF PARTICLE COUNTER & SHAPE CLASSIFIER
LNF PARTICLE COUNTER & SHAPE CLASSIFIER Image

The Spectro LNF Q200 series applies the world’s best oil particle counter technology.  With an intuitive, configurable GUI and no calibration required, the Q200 series is fast, accurate and easy to use.

Sample preparation is efficient with the LNF. Viscosities up to 320 cSt can be processed without dilution due to the wide dynamic range. And unlike conventional light blockage particle counters, there are no flow control valves that need adjusting when testing different sample viscosities.

The advanced design makes it much more than just a particle counter: The LNF also calculates free water in ppm, and differentiates contaminants. Several models are available providing particle counts and codes, abnormal wear classification and ferrous wear measurement.


Features & Benefits

  • ASTM D7596 – Standard Test Method for Automatic Particle Counting and Particle Shape Classification of Oils Using a Direct Imaging Integrated Tester
  • Particle Count for all particles >4 μm to 100 μm
  • Highest saturation limit, up to 5,000,000 particles/ml with a coincidence error <2%
  • Viscosity range ISO15 to ISO320, undiluted
  • Images through dark fluids containing up to 2% soot with automatic laser gain control
  • Error corrections for water and air bubbles
  • Particle counts and codes per ISO 4406, NAS 1638, NAVAIR 01-1A-17, SAE AS 4059, GOST, STM D6786, HAL, and User defined bins.
  • Export formats include SpectroTrack and AMS Machinery Health Manager

Classification of wear particle shape

LNF Q200 directly images wear particle silhouettes, and counts and classifies wear particles over 20 microns as cutting wear, sliding wear, fatigue wear, nonmetallic or fibers. This allows operators to determine the type of wear debris, wear mode and potential source from internal machinery components.


Ferrous Content Measurement

Ferrous wear measurement is a critical requirement for monitoring machine condition. The high sensitivity magnetometer measures and reports ferrous content in ppm/ml, and provides ferrous particle count and size distribution for large ferrous particles. The in-line design of the magnetometer with the LNF flow cell enables measurement of both ferrous content and total particle count on the same sample, eliminating the need to measure Ferrous content on another instrument.


Models available:

  • SpectroLNF- Q210: LNF Particle counter.
  • SpectroLNF -Q220: LNF Particle counter with wear particle shape classifier.
  • SpectroLNF- Q230: LNF Particle counter, automatic shape classifier, and ferrous monitoring with a magnetometer.

  Q210     Q220     Q230
Total particle count & codes X X X
Non-metallic particles (sand/dirt)-quantity X X X
Free water measurement X X X
Air bubble/water droplet correction X X X
Wear particle classification   X X
Ferrous content, ppm     X
Fe particle count & size distribution     X
Viscosity option X X X
Auto sampler option X X X
T2FM Q500 - Laboratory Ferrography
T2FM Q500 - Laboratory Ferrography Image
T2FM Q500 Analytical Ferrography Laboratory is a complete analytical system for the separation and interpretation of wear and contaminant particles in used lubricant oils, hydraulic fluids, coolants and fuels. It consists of the T2FM Ferrogram maker, a bichromatic microscope, video camera and image capture software. The SpectroT2FM Q500 is fast because there is no delay time as sample is pumped through plastic tubing before reaching the ferrogram surface. The T2FM delivers the entire sample and all the particles contained therein onto the ferrogram surface. A crystal clear rinse is obtained without fail for every ferrogram. There are no last minute drips of oil sample onto the ferrogram leaving distracting halos around the particles when viewed under the microscope. A bichromatic microscope is used to view and examine ferrograms made with the SpectroT2FM Q500. The bichromatic microscope is equipped with both reflected (red) and transmitted (green) light sources so that the ferrogram may be illuminated from both above and below the microscope stage. With bichromatic illumination, metal particles, which reflect light, appear bright red, whereas nonmetallic particles appear green because light transmits through them. A video camera connected to a computer displays, prints, stores and retrieves ferrographic images. Comparison of old ferrograms with ferrograms from recent lubricating oil samples allows determination of evolving wear modes inside a machine or engine.
Features & Benefits
  • ASTM D7684 - "Standard Guide for Microscopic Characterization of Particles from In-Service Lubricants"
  • ASTM D7690 -"Standard Practice for Microscopic Characterization of Particles from In-Service Lubricants by Analytical Ferrography"
  • Ferrography assists in the diagnosis of the origin, characteristics and distribution of wear particle debris.
  • Efficient separation of wear and contaminant particles from fluid samples.
  • Rapid preparation of ferrogram.
  • No deformation of particles.
  • Separates particles up to 800 µm in size.
  • Easy to operate.
Lube Chemical Properties
FLUIDSCAN PORTABLE OIL ANALYSIS SYSTEM
FLUIDSCAN PORTABLE OIL ANALYSIS SYSTEM Image

The FluidScan® Q1100 provides direct quantitative measurement of a lubricant’s condition and plays an important role in Machine Condition Monitoring (MCM) for proactive and predictive maintenance in Reliability Management programs. It determines when oil needs to be serviced due to degradation of the oil chemistry or contamination by other fluids such as water or the wrong oil.

The FluidScan now includes an innovative test methodology for both dissolved and free water, a practical alternative to more complex tests such as Karl Fischer titrations.

Accurate determination of oil degradation

The FluidScan correlates to TAN and TBN measurements made with the ASTM D664 and D4739 titration methods.

Simple results display and data handling

The device software displays interpreted test results, including oil health determination. Data can be exported to companion software, including the AMS OilView LIMS module.

It is compliant with ASTM D7889 “Standard Test Method for Field Determination of In-Service Fluid Properties Using IR Spectroscopy.”

It also fulfills the National Emission Standards for Hazardous Air Pollutants for Reciprocating Internal Combustion Engines (NESHAP RICE) requirements for extending oil change intervals in engines and back-up generators when used in conjunction with the Spectro Q3050 Portable Viscometer.

The portable Q1100, when used in conjunction with OilView software, enables route based oil analysis, which integrates  with other widely used predictive maintenance technologies such as vibration and thermography. The Q1100 plays an important role in predictive maintenance and Machinery Health™ management by measuring water, total acid number (TAN), oil oxidation, glycol, total base number (TBN) and other parameters. In addition, the unit’s patented flip-top design speeds test preparation and cleanup.

The route-based capability of the FluidScan® Q1100’s operation allows the device to virtually eliminate mislabeled samples and long wait times for laboratory analysis. Furthermore, results highly correlate to TAN and TBN laboratory tests conducted with ASTM D664 and D4739 titration methods and water tests with the ASTM D6304 Karl Fischer Titration Method.


Features & Benefits

This portable IR spectrometer uses advanced data processing and a built-in oil application library to deliver immediate, actionable quantitative results for water, TAN and TBN.

Applications include mineral and synthetic oils used in machinery components:

  • Gear boxes
  • Compressors
  • Hydraulic systems
  • Turbines
  • Transmissions
  • Diesel engines

ASTM Compliance

  • ASTM D7889 Compliant- “Standard Test Method for Field Determination of In-service Fluid Properties Using IR Spectroscopy”
  • High correlation to KF water, TAN and TBN laboratory tests
  • Reproducibility and repeatability comparable to benchtop FTIR method ASTM E2412
  • Data analysis compliant to ASTM E1655

Easy to use

  • Needs just one drop of oil and one minute to test
  • No solvents required to clean
  • Color coded alarm levels

Simplify work flow with route-based oil analysis

  • Eliminate mislabeled samples and long response times from labs
  • Generate sampling routes for walkaround oil analysis using AMS OilViewTM software.
  • Achieve high levels of data integrity with seamless upload of data into OilViewTM

Comprehensive Fluid Library
  • The Q1100 is available with over 500 fluids in the on-board Oil Library for immediate, out-of the-box operation, and additional oils can be added to the oil library by the end-user
  • Results for critical properties such as TAN, Oxidation and water contaminationfor industrial lubricants and TBN, water, oxidation, nitration, sulfation, glycol and soot for engine oils.

Fluid Manager desktop application provides:

  • Report capability
  • Device synchronization
  • Data backup
  • Asset Manager database
All-in-One Analyzers
MINILAB 53 OIL ANALYSIS SYSTEM
MINILAB 53 OIL ANALYSIS SYSTEM Image

Oil analysis provides early indications of equipment wear and identifies the root causes of corrosion.  On-site oil analysis eliminates the wait associated with sending samples off-site and enables immediate decision making.

With three simple test, the MiniLab 53 delivers comprehensive on-site oil analysis, providing immediate actionable results, saving time and reducing costs.

Highlights of this system include:

  • One product, delivering lab-quality analysis outside of the lab
  • Simplified workflow for the non-expert user, no chemist required
  • Simplified data handling and report interpretation via OilView and Trivector reporting

Trivector™ – oil and machine health simplified

The TriVector™ is a simple representation of the integrity of the lubrication system and the health of the machine itself. The Trivector indicates the degree of health in each vector.  In order to understand the Trivector condition, one must measure the key physical and chemical parameters of the oil.

The MiniLab 53 combines three simple tests that take less than 10 minutes to complete

OilView™ LIMS asset management software

The Minilab 53 uses the AMS OilView LIMS module to operate the MiniLab. The OilView software includes an Asset Management database and a reference oil database which can be expanded by the end user.
It provides several standard and configurable report formats with automatic email distribution of reports, and alarm limit templates and analytics.
Color-coded Trivector reports provide a clear snapshot of machinery health by identifying parameters that are outside normal limits.
MICROLAB ALL-IN-ONE AUTOMATED LUBRICANT ANALYSIS SYSTEM
MICROLAB ALL-IN-ONE AUTOMATED LUBRICANT ANALYSIS SYSTEM Image

The MicroLab 40 is a fully automated oil analyzer that provides diagnostic analysis of engine, generator, gear box, hydraulics, power steering, and transmission fluids.

The MicroLab, originally developed by On-Site Analysis, has an embedded expert system which translates all of the analytical data into maintenance actions specific to your equipment. The artificial intelligence of the system is built from over 20 years of industry knowledge and more than 10,000 rules statements to generate the diagnostic statements that are specific to each application, the type of equipment and the type of oil.

The MicroLab is compliant with ASTM D7417 “Standard Test Method Analysis of In-Service Lubricants Using Particular Four-Part Integrated Tester (Atomic Emission Spectroscopy, Infrared Spectroscopy, Viscosity, and Laser Particle Counter)



MicroLab 30 – Provides automated comprehensive diagnostic analysis of engine, generator, gear box, power steering, and transmission fluids.

MicroLab 40 – Provides automated comprehensive diagnostic analysis of engine, generator, gear box, hydraulics, power steering, and transmission fluids. Recommended if particle count is needed for hydraulics.


Chemistry

The MicroLab infrared spectrometer measures six key parameters which indicate potential oil degradation and contamination. Both the MicroLab 30 and 40 provide:

  • Oil degradation: oxidation, nitration, total base number
  • Oil contamination: soot, water, glycol

 Elemental Analysis

The MicroLab Optical Emission Spectrometer quantifies wear metals caused from mechanical components, as well as other elements from oil additives and contamination.

  • Basic metals include: Al, Cr, Cu, Fe, Pb, Mo, K, Si, Na, Sn
  • Extended metals include: Ba, B, Ca, Mg, Mn, Ni, P, Ti, V, Zin

 Viscosity

The MicroLab Dual Temperature Viscometer (DTV) provides kinematic viscosity analysis which can identify potential oil degradation or contamination.

  • Kinematic viscosity at 40°C and 100 °C
  • Viscosity index (VI)

 Particle Count

The MicroLab 40 is equipped with a particle counter to measure particle contamination which is crucial for maintaining hydraulic systems, compressors and turbines.

  • Gross particle count
  • ISO particle size
Portable Oil Analysis Kits
Portable Oil Analysis Kits Image

Portable Oil Analysis Kit

Monitoring lubricant condition in machine wear when and where it is needed significantly reduces the time required for laboratory analysis and improves machine reliability. Spectro Scientific offers a wide range of portable devices with field simplicity and lab accuracy. The product combinations are powerful for different applications as together they provide more comprehensive analysis of oil condition, contamination and machine wear condition. All Spectro portable devices are battery powered, use small amounts of oil, and do not require solvents or chemicals to clean. They are light weight and ideal for field use.

The building blocks of the combination kit are the FluidScan 1000 Series handheld IR oil analyzer, MiniVisc 3000/3050 kinematic viscometer, and FerroCheck 2000 total ferrous magnetometer.


Specifications

Features of FluidScan® 1000 Series

  • TAN or TBN analysis, contamination and additive depletion by Infrared spectroscopy
  • Battery powered
  • Solvent-free
  • Build in alarm limits
  • One drop of oil (20uL)

Features of MiniVisc 3000 Series

  • Simple operation
  • Highly accurate, fixed temperature at 40° C
  • Battery powered
  • Solvent-free
  • Small oil volume (60uL)

Basic Oil Analysis Kit: A quick check with viscosity and ferrous particle concentration in the field is the simplest way to make sure oil is good and machine wear is within alarm limits. With FerroCheck 2000, users can quickly check ferrous particle concentration up to 1%. It is a complimentary device to the MiniVisc 3000 and together they provide basic oil analysis needs for field service professionals.

Antifreeze Analysis
COOLCHECK COOLANT AND DIESEL EXHAUST FLUIDS (DEF) ANALYSIS SYSTEM
COOLCHECK COOLANT AND DIESEL EXHAUST FLUIDS (DEF) ANALYSIS SYSTEM Image
Cooling systems play a vital role in preserving the overall engine heat balance and in protecting engine components against corrosion and other problems. Machinery Lubrication magazine estimates that 60% of engine downtime in the commercial sector is cooling system related.
CoolCheck provides automated measurement and profiling of coolant condition and diesel exhaust fluids integrity.
The analyzer employs both NIR and UV spectrometers to determine the health of your coolant system.

Testing your coolant and maintaining your system at optimum levels will help prevent:
  • Corrosion, pitting, rust build-up
  • Damaged seal/coolant leaking into oil
  • Overheating, boil-over, engine seize-up
  • Engine damage from freezing

As an added benefit, CoolCheck tests for correct DEF levels. An incorrect DEF mixture can also be harmful:
  • Reduces engine efficiency
  • Negates emission reduction efforts

Coolant Tests

  • Coolant Type
  • Clarity
  • Color
  • Presence of Contamination
  • Boilin Point
  • Freeze Point
  • Glycol Content (%)
  • Nitrites

Diesel Exhaust Fluid Tests

  • % UREA
  • % DEF
Fuel Dilution
FDM Q6000 FUEL DILUTION METER
FDM Q6000 FUEL DILUTION METER Image

Fuel dilution in lubrication oil can cause serious engine damage.  In diesel engine crankcases, for example, contamination can be caused by excessive idling, defective injectors and loose connections.  Fuel dilution can also cause intercooler leakage in aircraft hydraulic systems.

The Q6000 Fuel Dilution Meter (FDM) is a portable fuel dilution meter that can be used in the laboratory or in the field to provide rapid and accurate measurements of fuel contamination in engine oil.

The Q6000 was designed with a patent-protected sampling method using an innovative “fang” design.  The sampling occurs using a headspace system with repeatability of <+5 percent RSD up to 15 percent fuel content.  The headspace vapor sampling approach also eliminates the need to heat fuel-laden samples and does not require the use of solvents.

Developed in collaboration with the U.S. Navy, the Q6000 detects contamination in less than two minutes, allowing operators to make immediate decisions. The device requires just a small sample size in a disposable vial.  The analysis results are displayed in percent fuel so operators can make rapid decisions about maintenance actions.  In addition, the intuitive touchscreen and audio prompts guide the operator through the testing process.


Features & Benefits

  • Conforms to ASTM D8004 – “Standard Test Method for Fuel Dilution of In-Service Lubricants Using Surface Acoustic Wave Sensing”
  • Innovative headspace sampling fang design ensures excellent repeatability (<= 5% RSD).
  • 0.2 to 15% fuel dilution measurement range.
  • Disposable FDM vials eliminate carryover contamination.
  • Onboard memory allows use of up to three stored calibration profiles.
  • Sample ID entry and data file export via USB cable.
  • Battery powered, lightweight, optional hard case for transit.

Fast and easy to use

  • Small sample required in disposable FDM vial – no solvents needed for cleaning.
  • Test results within a minute for direct measurement of fuel dilution.
  • Result in % fuel displayed, allowing immediate maintenance actions.
  • Color touchscreen.
  • Audio prompt feature guides operators through testing.

Flash Point
MINIFLASH TOUCH FLASH POINT ANALYZER
MINIFLASH TOUCH FLASH POINT ANALYZER Image

MINIFLASH TOUCH is a uniquely designed flash point tester for the determination of flashpoints of liquids and solids, using the Grabner flash point detection method of measuring the instantaneous pressure increase inside the continuously closed chamber, triggered by an energy-controlled electric arc. Heating the test chamber from the top avoids condensation of high volatile compounds, significantly improving the test results. Its continuously closed cup design and small sample volume of only 1-2 mL offers maximum safety, avoids offensive fumes in the testing area and reduces sample waste. The fast thermoelectric cooling at the end of a test and the fast and easy handling of the instrument save expensive labor time.

The full color touch-screen of the MINIFLASH TOUCH runs on Microsoft® Windows® software and features an intuitive menu navigation that requires no training for flashpoint testing. Along with its convenient touch screen design, the MINIFLASH TOUCH offers an extended temperature range from 0 to 400°C, hassle-free communication with USB, Ethernet, LIMS and PCs and nearly unlimited storage capacity for programs and results.

MINIFLASH determines the flash point according to ASTM D6450 and according to the advanced ASTM D7094 standard. This procedure describes the “Standard Test Method for Flash Point by Modified Continuously Closed Cup (MCCCFP)”, which offers the highest repeatability and reproducibility and an excellent correlation to the D93 Pensky-Martens method: “There is no statistically significant bias observed between ASTM D7094 and ASTM D93 Procedure A” as concluded during the last Round Robin. Furthermore, test results are equivalent to other well known standards such as Abel and TAG, and thanks to its unique design MINIFLASH can be used for more difficult applications such as flash-point testing of contaminated samples like diesel fuel in lube oil or gasoline in diesel fuel and for biodiesel testing.

The new MINIFLASH TOUCH analyzer also includes improved methods for simulation of EN ISO 3679 and EN ISO 3680. Due to true portability and rugged housing, the MINIFLASH TOUCH is also the perfect solution for mobile labs and military applications.


Features

  • Flashpoint according to ASTM D6450 (Flash-Point by Continuously Closed Cup) and ASTM D7094 (Flash-Point by Modified Continuously Closed Cup)
  • FLASHPOINT COMMITTEE STATEMENT: “There is no statistically significant bias observed between ASTM D7094 and ASTM D93 Procedure A.”), equivalent EN ISO 2719, excellent correlation to ASTM D56, ISO13736, IP170
  • New methods for EN ISO 3679 and EN ISO 3680 simulation
  • Dilution Flashpoint Testing
  • Go / No Go Flashpoint Testing
  • Fast Screening Methods
  • Automatic ignition cleaning method
  • Maximum safety through Grabner continuously closed cup method (Ignition Protection Technology™)
  • 1-2 ml sample size * No Open Flame, no offensive vapors in the lab * Highest accuracy (see precision statement)
  • Extended temperature range: 0 to 400°C with external cooling (MINIFLASH FLPH TOUCH)
  • Fully remote operable * Big, color touch-screen for convenient, intuitive menu navigation
  • Touch Screen Runs on Microsoft® Windows®: Full integration with network, LIMS and PC
  • Hassle-free communication and data transfer via USB and Ethernet
  • USB printer support
  • Good Laboratory Practice: User Access Control
  • Portable for Mobile and Field Use (car battery connector)
  • Worldwide standard method for the flavors and fragrances industry
  • Approved for the ASTM specifications of recycled fuel and biodiesel
  • Short measuring time (depends on sample type) due to small sample volume of 1-2 ml
  • Combustion Analysis™
  • Excellent thermoelectric heating and cooling regulation through Peltier Protection Technology™

Specifications

  • MINIFLASH FLP TOUCH: 0 to 200 C (32 to 390 F)
  • MINIFLASH FLPH TOUCH: 0 to 400 C (32 to 750 F)
  • MINIFLASH FLA/FLAH: With 8 sample capability autosampler
  • Power Requirements: 100/110/230 V AC, 50/60 Hz, 150 W
  • Field Applications: 12 V / 8A DC (vehicle battery)
  • W x H x D: 253 x 368 x 277 mm (10″ x 14.5″ x 10.9″)
  • Weight: 12 kg (26 lb)

Oil in Water Analysis
INFRACAL OIL IN WATER ANALYZER
INFRACAL OIL IN WATER ANALYZER Image

With over 3,500 oil and grease monitors in world-wide use today, InfraCal 2 Analyzers, originally developed by Wilks, have become a standard for the petrochemical industry.  These essential tools ensure that oil content levels are below the regulated limit in water, drill cuttings, and soil.

Both the InfraCal 2 TRANS-SP and InfraCal 2 ATR-SP are recommended for measuring oil in water, TPH in soil or FOG in wastewater.

MODELS

INFRACAL 2 ATR-SP INFRACAL 2 TRANS-SP
MDL Water  0.3 ppm  0.1 ppm
MDL Soil  3 ppm  1 ppm
Solvent  Hexane, cyclohexane, Vertrel MCA  Perchloroethylene, S-316
Method Complies  ASTM D7066 EPA 413.2 EPA 418.1
Method Compares  EPA 1664 ISO 9377-2  EPA 1664 ISO 9377-2

The InfraCal 2 Analyzers for measuring oil in water or soil can be used for a number of different applications. Our primary applications are listed below:

The fact that InfraCal Analyzers over 10 years old are still operating in the corrosive environment of offshore oil rigs attests to their rugged, dependability. The analysis procedure takes less than 15 minutes and can be done by minimally trained personnel. They use field proven infrared technology for measuring oil in water, oil content in drilling mud or drill cuttings, TPH (total petroleum hydrocarbons) in soil and FOG (fats, oil and grease) in wastewater.

The new InfraCal 2, the latest introduction to our easy to use analyzers, uses the same measurement technology as our InfraCal TOG/TPH Analyzers with added features such as data storage and transfer, multiple calibrations and password protection for instrument settings. The InfraCal Analyzers are stand-alone fixed filter infrared instruments that give results that are comparable to EPA 1664 and ISO 9377-2 and comply with ASTM D7066, EPA 413.2 and 418.1.

Viscosity Analysis
Q300 AUTOMATIC VISCOMETER
Q300 AUTOMATIC VISCOMETER Image

SpectroVisc Q300 is a bench-top automatic kinematic temperature bath viscometer optimized for the analysis of used and new lubricants. It conforms to the requirements in ASTM D445, D446, D7279, IP 71 and ISO 3104. It is also the ideal system for used oil analysis laboratories that need to test a wide range of lubricant viscosities. The SpectroVisc Q300 is a self-contained viscometer system that consists of a thermostatic bath with circular heater and a control column. The bath contains 4 patented viscometer tubes together with optical sensors to detect the flow of oil through the tubes. All measuring tubes function independently of each other. The control column has an LCD display that provides the user with information about the system’s status and an array of LED’s indicate the current status of each measuring tube. An optional external computer can also be used to control the system for applications where more extensive data handling requirements are necessary.

The user of the SpectroVisc Q300 has the option to operate in two modes, standard viscosity determinations or measuring tube calibration. In both modes, the user chooses how many determinations have to be made for an average result. The operator also controls additional parameters such as tube constants, and cleaning cycle.


Features & Benefits

  • ASTM D7279 – “Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids by Automated Houillon Viscometer”
  • Viscosity analysis of used oil provides an early warning of lubricant degradation and contamination
  • High throughput – up to 60 samples per hour to ASTM precision.
  • Small sample volume – 0.3 to 0.6 ml.
  • Low solvent consumption – 2.5 ml per sample.
  • Extremely easy to use.
  • Automatic flow time measurement.
  • Fully automatic cleaning and drying.
  • Fast, easy tube replacement, no need to drain bath.
  • Single or dual solvent injection system.
  • No PC required for system to operate.
  • Optional dual measurement capability.
Q3000 PORTABLE AUTOMATIC VISCOMETER
Q3000 PORTABLE AUTOMATIC VISCOMETER Image

The SpectroVisc Q3000 series viscometers are the first truly portable, solvent-free, temperature-controlled 40C kinematic viscometers, providing high-accuracy measurements for easy detection of viscosity variations caused by contamination, mix-up and oil degradation. The devices were designed to determine kinematic viscosity in the field for applications where immediate results are essential for determining the health of critical equipment.


The SpectroVisc Q3000 family includes two models:

  • SpectroVisc Q3050 portable viscometer, 1-700 cSt @ 40° C
  • SpectroVisc Q3000 portable viscometer, 10-350 cSt @ 40° C

SpectroVisc Q3000 viscometers use a patented split cell design that enables measurement of kinematic viscosity using only a few drops (60µL) of oil. Operation of the device is simple; after loading ~60µl oil into the upper well of the chip, gravitational force causes the fluid sample to flow down the microchannel. A proportional-integral-derivative (PID) controller is used with a heating element to effectively maintain the test cell temperature at 40°C to provide a true 40C kinematic viscosity measurement. After measurement, the test cell is simply wiped clean with a non-abrasive pad.

This viscometer operates as a Hele-Shaw cell, where Stokes flow is present between two parallel plates. The fluid passing between an LED and a photodiode causes a drop in the photodiode voltage. The average velocity of the fluid is calculated from the elapsed time between photodiodes and  is then used  to generate a kinematic viscosity for the measured sample.


Features & Benefits

  • Conforms to ASTM WK40831 – “New Test Method for Field Determination of Kinematic Viscosity Using Microchannel Viscometer”
  • Direct kinematic viscosity measurement
  • Split-cell capillary channel
  • Self-contained with high-resolution touch screen, battery and microprocessor
  • Small sample size
  • Temperature controlled: 40°C ± 0.1°C
  • Works with transparent and opaque oils
  • No cleaning solvent necessary
  • Weighs less than 1.8 kg (4 lbs.)
  • Battery operated
MINITEST FFK GREASE FLOW TESTER
MINITEST FFK GREASE FLOW TESTER Image

MINITEST FFK automatically determines the flow-pressure properties of lubricating grease at low temperatures down to -60°C by means of the Kesternich test. The original and time-consuming method is now fully automated and the measuring range is extended far below the original one, resulting in a considerably improved test precision. A powerful two stage Peltier element avoids the use of a large and expensive cryostat. The principle of the test is based upon the necessary pressure build-up to press an amount of grease through a standard test nozzle at a preset temperature.


Advanced Technology

The original manual and time-consuming method is now fully automated in MINITEST FFK. The measuring range is extended far below the original test method. Temperature control is performed with Peltier elements and eliminates the use of a large and expensive cryostat. No further accessories are necessary.


Features & Benefits

• Fully Automatic • Temperature Adjustable from -60 to +30°C (-76 to + 86°F) • Thermoelectric Cooling without Cryostat (Peltier Elements) • Portable and User Friendly • Powered by Vehicle Battery for Field Use


Sample Handling

A layer of the grease to be tested is put on a glass plate without air bubbles. The measuring nozzle is then pressed multiple times onto the layer of lubrication grease until it is filled with grease. The full nozzle is inserted into the thermostatically controlled aluminum block of the tester and the chamber is air sealed.


Test Parameters

The test temperature and the equilibrium time are programmed. Further the expected flow pressure and the pressure increase for each step. For high flow pressures, a starting pressure above barometric can be set to limit the measuring time.


Measuring Procedure

The test temperature, equilibrium time, expected flow pressure and the pressure increase for each step are programmed. For high flow pressures, a starting pressure above barometric can be set to limit the measuring time. The test is performed fully automatically. When the test temperature is reached, the equilibrium time of up to two hours is started. After the equilibrium time, the pressure above the sample nozzle is increased in steps until a sudden pressure decrease, indicating that the grease is pressed through the nozzle. The test is stopped and the last pressure value is displayed as the flow pressure according to Kesternich.


Applications

Flow-properties of lubrication grease at low temperatures are a measure of great significance for central lubrication systems of vehicles and machineries. This property can best be measured according the method of Kesternich. This test method is suitable for temperatures at which no grease leaks out of the test nozzle. MINITEST FFK is an instrument for the determination of the flow pressure of lubricating greases at temperatures down to -60°C (-76°F).


Specifications

  • Test temperature: -60 to +30 °C (-76 to 86 °F)
  • Temperature resolution: +/- 0.1°C (32.18 °F)
  • Pressure range: 0 to 200 kPa (0 to 29 psi)
  • Pressure resolution: +/- 0.1 kPa (0.0145 psi)
  • Communication languages: German, English
  • Power supply: 100/120/230/240 V,50/60 Hz,120 W12V/
  • W x H x D: 196 x 315 x 175 mm
  • Weight: 10 kg (22 lbs)

TV2000 ASPHALT VISCOMETER
TV2000 ASPHALT VISCOMETER Image

TV2000 is to determine kinematic viscosity of liquid asphalts (bitumens), road oils and distillation residues of liquid asphalts (bitumens) all at 60°C (140°F) and of asphalt cements at 135°C (275°F) in the range from 6 to 100000 mm2/s (cSt).

Conforms to ASTM D2170 and EN/ISO 12595, with a temperature range from ambient to +230 °C. Temperature stability is ±0.01 K. The bath volume is 20 litres and the TV2000 has three openings for holding viscometers. A cooling coil to work below ambient temperature is integrated.


Technical Data

Weight [kg] 40
Mains 230V-50~60Hz
Test Method ASTM D2170
Other Test Methods IP 319, EN/ISO12595
Bath Temperature Accuracy [± ] 0.01 °K
Maximum Temperature 230 °C
Minimum Temperature 20 °C
Bath Volume 20 litre
TV4000 BITUMEN VISCOMETER
TV4000 BITUMEN VISCOMETER Image

This test method covers procedures for the determination of viscosity of asphalt (bitumen) by vacuum capillary viscometers at 60°C. It is applicable to materials having viscosities in the range from 0.0036 to over 20,000 Pa.

TV4000 conforms to ASTM D2171, with a temperature range from ambient to +230 °C. Temperature stability is ±0.01 K. The bath volume is 40 litres and the TV4000 has seven openings for holding viscometers. A cooling coil to work below ambient temperature is integrated. A bath drain is included.


Technical Data


Weight [kg] 60
Mains 230V-50~60Hz
Test Method ASTM D445, ASTM D446, ASTM D2170, ASTM D2171
Other Test Methods IP 71-1, IP 71-2, IP 122, AASHTOT202, IP 222, EN12596
Bath Temperature Accuracy [± ] 0.01 °K
Maximum Temperature 230 °C
Minimum Temperature 20 °C
Bath Volume 40 litre
Viscol 10A Fully Automatic Kinematic Viscometer for Oils & Fuels Applications
Viscol 10A Fully Automatic Kinematic Viscometer for Oils & Fuels Applications Image

ASTM D445, ISO 3104, ISO 3105, IP 7

Applications: Hydraulic oil, In-Service oil, Formulated oil, Base stock, Additives, Glycol, Fuel, Liquid petroleum and related product.


Key Features:

  • Programmable temperature range from ambient to 130 °C
  • Measurement Range: 0,5 – 25.000 mm2/s cSt, based on the selected viscometer tubes
  • Accommodates Multifolds tube covering wide range of applications
  • Using very low volume wash solvents with less waste
  • Automatic sample injection
  • Fast analysis with automatic viscosity measurement and reporting
  • Automatic user programmable viscometer cleaning and drying procedures
  • Built-in single and dual automatic wash programs
  • Easy tube replacement, no need to drain bath oil
  • Easy to use, not requires any special training or skills
  • Built-in Windows based touchscreen panel PC
  • User friendly software
  • Multifunction security alerts including over temperature and low bath oil
  • Compact size for use in any laboratory
  • Continuous User Support with Biolab assurance
Viscol 10P Fully Automatic Kinematic Viscometer for Polymer Applications
Viscol 10P Fully Automatic Kinematic Viscometer for Polymer Applications Image

ASTM D445, ISO 3104, ISO 3105, IP 7, ASTM D789, ASTMD4603, ASTM D2857, ASTM D1795, ASTM D1243

Applications: Dilute Solution Viscosity of Polymers in Organic Solvents and Aqueous Solutions


Key Features:
  • Programmable temperature range down to 0°C up to 110°C
  • Measurement Range: 0,5 – 25.000 mm2/s cSt, based on the selected viscometer tubes
  • Accommodates Multifolds tube covering wide range of applications and specially designed viscometer tubes for polymer applications
  • Using very low volume wash solvents with less waste
  • Automatic sample injection
  • Fast analysis with automatic viscosity measurement and reporting
  • Automatic user programmable viscometer cleaning and drying procedures
  • Built-in single and dual automatic wash programs
  • Easy tube replacement, no need to drain bath oil
  • Easy to use, not requires any special training or skills
  • Specially designed viscometer parts for polymer applications with highly resistant materials against corrosive environment
  • Cooling unit for highly stable temperature measurement
  • Built-in Windows based touchscreen panel PC
  • User friendly software
  • Multifunction security alerts including over temperature and low bath oil
  • Compact size for use in any laboratory
  • Continuous User Support with Biolab assurance and quality
Viscol 10J Fully Automatic Kinematic Viscometer for Low Temperature Applications
Viscol 10J Fully Automatic Kinematic Viscometer for Low Temperature Applications Image

ASTM D445, ISO 3104, ISO 3105, IP 7

Applications: Suitable for jet fuel testing at -20

Key Features:

  • Programmable temperature range down from -30°C up to 110°C
  • Measurement Range: 0,5 – 25.000 mm2/s cSt, based on the selected viscometer tubes
  • Accommodates Multifolds tube covering wide range of applications
  • Using very low volume wash solvents with less waste
  • Automatic sample injection
  • Fast analysis with automatic viscosity measurement and reporting
  • Automatic user programmable viscometer cleaning and drying procedures
  • Built-in single and dual automatic wash programs
  • Fully visible isolated double glazed bath made of Glass, Stainless Steel and Teflon parts
  • External cooling unit for stable low temperature measurements
  • Temperature controlled dry air supplier, ideal for drying processes at - 20°C
  • Easy tube replacement, no need to drain bath oil
  • Easy to use, not requires any special training or skills
  • Built-in Windows based touchscreen panel PC
  • User friendly software
  • Multifunction security alerts including over temperature and low bath oil
  • Compact size for use in any laboratory
  • Continuous User Support with Biolab assurance and quality
Viscol 10B Fully Automatic Kinematic Viscometer for Bitumens & Asphalt Applications
Viscol 10B Fully Automatic Kinematic Viscometer for Bitumens & Asphalt Applications Image

ASTM D445, ISO 3104, ISO 3105, IP 7, ASTM D2170

Applications: Suitable for liquid asphalts (bitumens), road oils and distillation residue of liquid asphalts at 60°C and asphalt cements at 135°C.

Key Features:

  • Programmable temperature range from ambient up to 170 °C
  • Measurement Range: 0,5 – 25.000 mm2/s cSt, based on the selected viscometer tubes
  • Accommodates Multifolds tube covering wide range of applications
  • Using very low volume wash solvents with less waste
  • Automatic sample injection
  • Fast analysis with automatic viscosity measurement and reporting
  • Automatic user programmable viscometer cleaning and drying procedures
  • Built-in single and dual automatic wash programs
  • Pre-heating unit for highly viscous samples
  • Easy tube replacement, no need to drain bath oil
  • Easy to use, not requires any special training or skills
  • Built-in Windows based touchscreen panel PC
  • User friendly software
  • Multifunction security alerts including over temperature and low bath oil
  • Compact size for use in any laboratory
  • Continuous User Support with Biolab assurance and quality
Viscol 10S Semi Automatic Kinematic Viscometer
Viscol 10S Semi Automatic Kinematic Viscometer Image

ASTM D445, ISO 3104, ISO 3105, IP 7

Applications: Hydraulic oil, In-Service oil, Formulated oil, Base stock, Additives, Glycol, Fuel, Liquid petroleum and related products

Key Features:

  • Programmable temperature range from ambient to 130 °C
  • Measurement Range: 0,5 – 25.000 mm2/s cSt, based on the selected viscometer tubes
  • Accommodates Multifolds tube covering wide range of applications
  • Using very low volume wash solvents with less waste
  • Automatic sample injection
  • Automatic user programmable viscometer cleaning and drying procedures
  • Built-in single and dual automatic wash programs
  • Easy tube replacement, no need to drain bath oil
  • Easy to use, not requires any special training or skills
  • Built-in Windows based touchscreen panel PC
  • User friendly software
  • Multifunction security alerts including over temperature and low bath oil
  • Compact size for use in any laboratory
  • Continuous User Support with Biolab assurance
Vapor Pressure

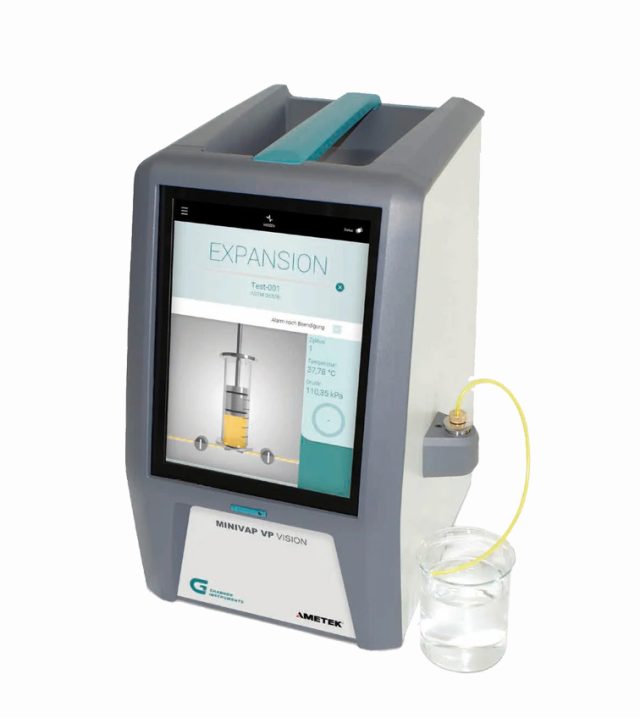

MINIVAP VAPOR PRESSURE TESTER
MINIVAP VAPOR PRESSURE TESTER Image

MINIVAP VP Vision is a highly versatile portable vapor pressure tester that features best-in-class precision and a pressure range of 0-2000 kPa. It is the first analyzer that demonstrates excellence in engineering by earning certificates for robustness and durability. Based on Grabner´s cutting-edge Cockpit™ technology, the instrument offers unmatched networking capabilities and enables worldwide access to analyzers.


Engineered for Excellence

MINIVAP VP Vision measures gasoline, jet fuel, crude oil, LPG and solvents. The analyzer provides a wide pressure range of 0 – 2000 kPa, without compromising precision. Long-term testing has demonstrated an unmatched repeatability of less than 0.2 kPa. The newly developed Grabner 2D-Correction™ (273 points) and exact piston positioning guarantee that accurate and precise results are received over the full measuring range.  MINIVAP VP Vision incorporates Grabner´s Sampling Pro™ valve design, which during ruggedness tests proved to be the best-in- class piston based design for minimizing cross contamination between various sample types.


Access. Anywhere. Anytime.

With the Cockpit™ PC software multiple instruments are automatically recognized and devices all around the world can be configured, monitored, diagnosed, serviced and upgraded from one central lab. The software can be accessed through a secure VPN tunnel, allowing for true mobile access to instruments from any place at any time. A unique call home function facilitates easy uplink to our well trained support team.


Highest Accuracy – Lowest Limit: Low Volatility Model MINIVAP VPL Vision

While the standard VP model is designed to sustain pressures up to 20 bar, some applications require increased measurement sensitivity for samples with a very low volatility. These applications include e.g. the measurement of Diesel, Oils or Flavors & Fragrances. The MINIVAP VPL Vision model is designed for low volatility measurements up to 150 kPa (21.8 psi). It shows a measuring repeatability better than 0.1 kPa for low volatile samples.


Direct / Indirect Determination of the Absolute Vapor Pressure (“VOC-Methods”)

The model MINIVAP VPL Vision was developed to automate the manual ASTM D2879 Standard Test Method for Vapor Pressure by Isoteniscope for low volatile samples, which is used by the chemical industry. The instrument incorporates a direct and an extrapolated “VOC” method for absolute vapor pressure measurement of single- and multi-component samples.

The direct “VOC”-method is a static method for determining the absolute vapor pressure required for safety data sheets. The indirect method additionally allows to extrapolate to extremely low pressures or to temperatures that exceed the instruments temperature range (-100°C to +300°C). Both methods yield results comparable to the static ASTM D2879 Isoteniscope method, but do not require sample evacuation prior to testing. Based on the GRABNER Triple Expansion Method, air/gases are removed automatically from the measurement result and the sample composition is maintained during measurements.

“VOC”-methods are available in both the MINIVAP VPL and the VP Vision analyzer. Because of a better sensitivity for low volatile samples, the precision of the VPL Vision is significantly better in the pressure range of 0.1 to 30 kPa.


Methods included in MiniVap VP Vision

  • ASTM D6378 – Vapor Pressure of Gasoline and Petrochemicals (VPx)
  • ASTM D5191– DVPE Dry Vapor Pressure Equivalent (w/ EPA and CARB correlation formulas)
  • ASTM D6377 – Vapor Pressure of Crude Oil (VPCRx)
  • ASTM D6897 – Vapor Pressure of LPG up to 2000 kPa
  • ASTM D5188 – V/L-Ratio (TV/L)
  • Fast Mode™ – ASTM D5188 & D5191 Fast Mode™ Method
  • EN 13016 / 1 – Air Saturated Vapor Pressure
  • EN 13016 / 2 – Absolute Vapor Pressure
  • IP 394, 409, 481 – IP Methods for gasoline and crude oil
  • JIS K2258-2 – Japanese standard method for gasoline
  • SHT 0769 – Chinese standard method for gasoline
  • SHT 0794 – Chinese standard test method for Vapor Pressure of Petroleum Products (Mini Method)
  • SNT 2932 – Determination of Vapor Pressure of Chemicals – Triple Expansion Method
  • GOST 52340 – Russian / CIS standard method for crude oils
  • “VOC” Methods – Direct and Indirect Low Volatility Methods
  • TVP – True Vapor Pressure TVP of Crude Oils (FW 2.0)
  • Custom – Customized Single and Triple Expansion Methods

CRUDE OIL PACKAGE

MINIVAP VPXpert or MINIVAP VPSHcrude_oil_aks3 (only VPSH: plus Rocking Plate) – Floating Piston Cylinder GRABNER INSTRUMENTS’ complete package for the vapor pressure measurement of crude oil according to ASTM D6377 (Expansion Method). MINIVAP VPXpert and VPSH are extremely versatile instruments for the automatic determination of the vapor pressure behavior of gasoline and gasoline oxygenated blends, live and dead crude oil, solvents and other chemical

compounds. MINIVAP is the world wide standard instrument that is used by all major refineries, oil and pipeline companies, independent laboratories and car manufacturers. The US-EPA declared MINIVAP as the official reference instrument for the USA. MINIVAP VPS/H are stand-alone units that do not require any accessories. The unique piston based design for automatic sample introduction and volume expansion of the measuring cell makes an expensive and bulky vacuum pump unnecessary. The Grabner measuring principle in combination with the latest standards ASTM D6377 (for Crude Oil) and ASTM D6378 (for Gasoline) avoids tedious sample chilling and air saturation. This new technology significantly increasesrefinery profits: it reduces expensive labor time, eliminates operator bias and has considerably improved test precision that offers the advantage to blend closer to the limits and avoid product give-away. MINIVAP VPS is mostly used for QC purposes while VPXpert and VPSH offer even more features for crude oil and R&D applications, like volatility studies at elevated temperatures and at very low vapor/liquid ratios.

TAN/TBN Analysis
PAT 940 TAN/TBN ANALYZER
PAT 940 TAN/TBN ANALYZER Image

Introducing a more user friendly and robust titrator combined with the latest touch screen/swipe technology. User friendly is a common phrase bounced around in many different industries. It is easy to say but not always true! Processes in the work place should be made as easy as they can to improve productivity and operational efficiency.

  • ‘Light touch’ screen with swipe reduce and enlargement functionality with graphs
  • Touch enabled QWERTY keypad that pops up for all data entry
  • Store up to 1000 methods and 1000 results
  • 50 shortcuts can be saved to the Homepage to quick start favourite methods
  • Continuous dosing operation for manual titrations

There are many complex methods within all industry types in the titration world, therefore introducing a more user friendly and robust potentiometer combined with the latest touch screen technology, is the perfect combination. PAT940 utilises the latest capacitive touch screen technology, what does that mean? This is the technology that your smart phone uses.


Application

  • Hydrocarbon composition including:
  • Total Acid Number to ASTM D664, ASTM D974
  • Total Base Number to ASTM D2896, ASTM D4739
  • Mercaptan Sulphur to ASTM D3227
  • H2S, Mercaptan Sulphur to UOP 163, UOP 212
  • Saponification Number to ASTM D94
  • Organic Chlorides in Crude to ASTM D4929
  • Iodine Value of Biodiesel to EN 14111

Features

  • Friendly and robust titrator combined with the latest touch screen/swipe technology.
  • Improved productivity and operational efficiency thanks to simple design features.
  • Light touch screen with swipe reduce and enlargement
  • Functionality with graphs
  • Touch enabled QWERTY keypad that pops up for all data entry
  • Store up to 1000 methods and 1000 results
  • 50 shortcuts can be saved to the Homepage to quick start favourite methods
  • Continuous dosing operation for manual titrations
  • Pre-programmed methods for TAN/TBN, H2S, Mercaptan Sulphur, Saponification Number, Iodine Value in Petroluem products and Organic Chlorides in Crude oils.
  • Unique dual simultaneous titration capability
  • Ability to have updates including new applications/methods sent via email and up loaded via USB.
  • Ability to perform ANY type of titration.
  • NEW option- automated systems for TAN/TBN with analysis ranging from 12, 48 to 96 vessels; similtaneous test both TAN and TBN on 1 unit, with 1 autosampler.

Technical Specification

  • Width 152mm Height 89mm Resolution touch screen display
  • Multiple linking PODs: Up to 16 Dispense PODs®can be linked simultaneously
  • Syringe volumes: 12.5 ml and 5 ml
  • Drive Design: Maintenance-free, direct drive stepper motor
  • Stroke Speed: 4.2 seconds to 800 minutes per stroke (3200 minutes in microstep mode)
  • Step Resolution: 24,000 steps
  • Imprecision (full stroke): ≤0.1% CV @ 50µl to 100 µl
  • ≤0.05% CV @ 250µl to 5ml
  • Inaccuracy (full stroke): ≤1% syringe volume
  • Dynamic equivalence point titration
  • Incremental equivalence point titration
  • Manual titration
  • Calibration with automatic buffer recognition
  • mV Range: -3200 – +3200 mV
  • Accuracy: ± 0.1 mV (± 0.0016 pH).
  • Resolution: 0.1mV
  • Amplifier Input Impendence: > 10 12Ω
  • Methods Up to 1000
  • Results Up to 1000
  • Measuring Range Pt100: 0.0 – 100°C
  • Resolution Pt100: 0.1°C
  • Measuring accuracy Pt100: ± 0.3°C (with linear calibration)
  • USB ports: 2 USB (Type A sockets) for connection of printers, USB sticks
  • Wireless Communication: Bluetooth Printing
  • Titrate POD®: 2X Titrate POD®9 PIN D-type (female) RS232
  • Balance: 1x 9 PIN D-type (female) RS232
  • Autosampler: 1x 9 PIN D-type (female) RS232
  • Network Connection: LAN RJ-45 connector, ethernet
  • Electrodes: 2x 6 pin LEMO (male)
  • Dispense POD: BUS RS485
  • Kycon 4 pin for series connections
  • Operating Temp Range: -10 to +45°C
  • Operating humidity: 8-90% RH non-condensing
  • Storage Temp Range: -20 to +70°C
  • Storage Humidity: 5-95% RH no-condensing
  • Supply Voltage 110V/220V – 160W
  • Electrode Recognition: Colour coded E-Chem® electrodes with auto recognition technology
  • Dialog Languages: English, German, French, Spanish, Chinese, Russian, Polish
  • Weight: approx 7.5kg
  • Dimensions: Control POD®25x13x22cm, Titrate POD®40x25x9cm, Dispense POD®14x14x5cm
Fuel Analysis
MINISCAN IRXPERT GASOLINE DIESEL AND JET FUEL ANALYZER
MINISCAN IRXPERT GASOLINE DIESEL AND JET FUEL ANALYZER Image

The MINISCAN IRXpert is the first completely portable multi-fuel analyzer for Gasoline, Diesel, Jet Fuel and Biofuel Blends, which uses the advantages of full spectrum information and full spectrum comparison to achieve utmost measurement accuracy. More than 100 fuel parameters are accurately determined by scanning the complete spectrum with superior resolution. Based on Grabner Instruments profound knowledge in fuel analysis, the MINISCAN IRXpert is designed as an intelligent, self-learning analyzer.

The MINISCAN IRXpert is a completely temperature regulated, robust and user friendly spectrometer for the automatic measurement of concentration of the most important components of gasoline and diesel. Advanced chemometrics, a worldwide database of calibration samples and information derived from the complete spectrum rather than from specific peaks provide highly reliable results for concentration measurement and key properties such as Octane and Cetane Numbers, Distillation Properties and Vapor Pressure. An integrated temperature controlled density meter allows for exact determination and stability of fuel density.

NEW! Data based on real samples collected and analyzed by SGS®!

For predicted properties, MINISCAN IRXpert operates calibration data, that has to adhere to the strictest quality standards. As a unique feature the instrument is equipped with a database of samples that have been collected and analysed by SGS!


Maximizing Ease of Use

MINISCAN IRXpert for testing fuels right from the street.  A high end full color touch-screen facilitates menu navigation and allows in depth spectrum analysis. USB and Ethernet interfaces facilitate quick data-transfer, printing, LIMS integration and remote control and service. For field use, the MINISCAN IRXpert can be run with a 12V car adapter.


Key Features

• Portable Fuel Analyzer for Gasoline, Jet Fuel, Diesel and Biofuel Blends • Smart Dual Cell Design • Full Spectrum Analysis • Superior Optical Resolution • Contamination Detection: Automatic distance Analysis between spectra • Temperature Regulated Filler, Density Meter and Measuring Cells • Laser Controlled System • Unlimited Number of Parameters


Models

Dedicated models for Gasoline or Diesel analysis are available, the professional model includes both, Gasoline and Diesel analysis. Dedicated models can easily be upgraded to a professional model.


GASOLINE PARAMETERS


Properties Aromatics
RON 70 – 110 Benzene 0 – 10 m%
MON 65 – 105 Toluene 0 – 20 m%
AKI 67 – 107 m-Xylene 0 – 20 m%
Distillation IBP, T10, T50, T90, FBP o-Xylene 0 – 20 m%
Evaporation E70, E100, E150 (°C) E200, E300 (°F) p-Xylene 0 – 20 m%
RVP & DVPE 40 – 105 kPa Ethyl benzene 0 – 20 m%
Density 0 – 3 g/cm3 Propyl benzene 0 – 20 m%
Precision (Density) r s.d. = ± 0.0005 g/cm3 Mesitylene 0 – 20 m%
Driveabilty Index Durene 0 – 20 m%
VOC Emissions Calculator Naphthalene 0 – 10 m%
Vapor Lock Index (VLI) Pseudocumene 0 – 20 m%
Unlimited User-Defined Parameters 2-/3-/4-Ethyl toluene 0 – 20 m%
Other Aromatics 0 – 20 m%
Oxygenates
MTBE 0 – 20 m% Octane Boosters
TAME 0 – 20 m% MMT/CMT (mg/l) 0 – 10,000
ETBE 0 – 20 m% Manganese (MMT) 0 – 2500
DIPE 0 – 20 m% DCPD 0 – 15 m%
Methanol 0 – 15 m% Nitromethane 0 – 9 m%
Ethanol 0 – 40 m%
Iso-Propanol 0 – 20 m% Other
2-Butanol 0 – 25 m% Cyclohexane 0 – 100 m%
tert-Butanol 0 – 25 m%
Sec-Butylacetate 0 – 10 m% Anilines
Iso-Butylacetate 0 – 10 m% Aniline 0 – 5 m%
Dimethylcarbonate 0 – 10 m% N-Me-Aniline 0 – 5 m%
Dimethoxymethane 0 – 10 m% N, N-Dimethylaniline 0 – 5 m%
Acetone 0 – 25 m% m-Methylaniline 0 – 5 m%
Other Oxygenates 0 – 20 m% o-Methylaniline 0 – 5 m%
p-Methylaniline 0 – 5 m%
Total Parameters  Range
Total Oxygen 0 – 12 m%
Total Aromatics 0 – 80 m%
Total Olefins 0 – 80 m%
Di-Olefins 0 – 20 m%
Total Aniline 0 – 5 m%
Total Esters 0 – 5 m%

DIESEL PARAMETERS


Properties
Cetane Number 20 – 80
Cetane Index 20 – 80
Kinematic Viscosity @40°C 0 – 10 mm2/s
Dynamic Viscosity @40°C 0 – 10 mPas
CFPP -50°C to +20°C
Distillation / Recovery IBP, T10/50/65/85/90/95, FBP, R250, R350
Density 0 – 3 g/cm3 (r s.d. = ± 0.0005 g/cm3)
Components
Total Aromatics 0 – 80 m%
Poly Nuclear Aromatics 0 – 50 m%
Cetane Improver: EHN, IPN 0 – 10,000 ppm
Biodiesel (FAME, FAEE) 0 – 40 v%

JET FUEL PARAMETERS


Properties Range
Flashpoint

-20°C to +100 °C

Freezing Point

-80°C to +20 °C

Kinematic Viscosity @ -20°C

0 – 10 mm²/s

Distillation

IBP, T10/ 50/90/95, FBP, E10/50, R200

Smoke Point

0 – 1000 mm

Total Aromatics

0 – 40 m%

Naphtalenes 0 – 5m%
MSEP

60 – 120 %

Density

0 – 3 g/cm3 (rs.d.= 0.0005 g/cm3 )

Components Range
Biodiesel (FAME) 0 – 0.12 m%

PARAFUEL NIR IN-LINE ANALYZER
PARAFUEL NIR IN-LINE ANALYZER Image

The ParaFuel™ NIR Process analyzer from LT Industries provides comprehensive inline analysis of Diesel, Gasoline, Jet Fuel, Kerosene, Crude Oil, Blending components and Blended Fuels for a wide range of critical properties including Octane, Distillation Points or RVP. The analyzer is also available in a benchtop version designed to improve efficiency when testing in laboratories.


Validate Fuel and Crude Oil Quality

With the ParaFuel™ analyzer, accurate measurement of the properties of petrochemical products and crude oils  is easy. Whatever the analytical need – inspection of crude oil or finished products, inline property measurements, or validating shipments – the ParaFuel™ can do the job. The optical analysis technique allows for easy integration and rapid inline measurement. ParaFuel™ Process Systems measures key chemical and physical properties rapidly and accurately directly in process, to monitor changing process conditions in real time and to adjust as necessary. The simple test procedure allows for greater experimental repeatability — and it does not require special operator skills. Inline Testing of up to 20 measuring points With the capability to measure 20 points with a single analyzer, you can validate quality and performance at all stages — from crude samples at the well to downstream refining.  Improve your process knowledge and control.


Measure in process or in the laboratory

The ParaFuel™ Process Analyzer comes complete with probes and flow cells built to suit your measurement needs. They are available in a variety of lengths, configurations and materials depending on your measurement requirements. High pressure and temperature sampling probes can withstand the conditions associated with oil production and refining. Instruments are designed for direct integration into existing control systems via the LTBus automation & communication software. The ParaFuel™ Analyzer can communicate directly via standard protocols such as Modbus and 4-20mA. The ParaFuel™ Benchtop System provides the same high quality measurements as the process system.


Key Features

  • Designed for 24/7 operation
  • Measure up to 20 process points with one analyzer
  • Probes and flow cells for continuous processes
  • Easy integration into existing DCS
  • Fully automated user interface
  • Remote diagnostic capability
  • Remote update capability
  • Enclosures for protection against dust, water and environment

Real-time-Analysis

Automated, nondestructive inline analysis, completed within seconds. Results sent to your DCS, PLC, or LIMS.

  • Control  the  use  of  high-value  crudes  and  chemicals — Measure concentrations and use only what you need
  • Validate quality throughout the process —  Determine where and when product falls out of specification
  • Make process adjustments in real time —  Reduce waste by adjusting processes rather than discarding batches
  • Reduce energy consumption and increase process efficiency — Accurately determine concentrations and reaction progress
  • Design quality into your process —  Achieve higher standards than are possible with batch testing alone

Benefits

  • ParaFuel™ analyzers are utilizing LT Industries´ knowledge of over 30 years experience in developing NIR analyzers
  • Fast inline or laboratory measurement
  • Real time monitoring of multiple process streams
  • Automated results on a simple interface
  • Validation of incoming product
  • Improved product quality
  • Improved repeatability
  • Reduced expenses
  • Minimal operator training
  • Rapid return on investment

Models Available:

  • ParaFuel™ NIR Process Analyzer Single System Includes one (1) High Energy Bubble Shedding Probe
  • ParaFuel™ NIR Process Analyzer Multi-System Includes Multiplexer and Up to twenty (20) Probes
  • ParaFuel™ NIR Benchtop Analyzer Includes one (1) Dip Probe

Fuel Properties (Gas, Diesel, Jet) Common Measurements
RON Vapor Pressure
MON Pour Point
Cetane Viscosity
RVP (kPa) CCR
Density / API Methanol
Flash Point Olefins
Cloud Point Hydrogen
CFPP Wax Content
Smoke Point Aniline Point
Specific Gravity Freeze Point
Aromatics, v% Cloud Point
Olefins, v% Distillation Points
MTBE, v% n-Paraffins
Saturates, v% C/H Ratio
Benzene, v% Water Content
Ethanol Yields
Distillation SARA
Evaporation Total Aromatics
Color API Gravity / Density
Pump Quality Emulsion Stability
Acidity / TAN
Petrochemical Properties Solids
p/o/m-Xylenes Asphalt
Paraffins TBP
Isoparaffins Asphaltene Content
Napthenes Asphaltene Deposition
Oxygenates Asphaltene Precipitation
Aromatics Sulfur
Olefins
c-Number
Acids in Alkylation
BTX
High/Low RON
Technical Data ALL Analyzers
Power Supply 100-240 VAC, 50/60 Hz
Scan time 30 seconds (user adjustable)
Computer Interface Standard Windows PC with LT Software Package
A-C Communication Standard TCP/IP Ethernet
Technical Data PROCESS Analyzer
Classification C1D2 Standard, C1D1 Optional
Control System Communication Modus RTU Standard (Option: Modbus TCP, 4-20 mA)
Number of measurement points Up to 20
Sample Up to 150 C and up to 7000 kPa (1000 psi)
Fiber Optic Cable Length 3 m standard, up to 200 m
Sample Temperature Measurement Automatic, built-in measurement
Technical Data BENCHTOP Analyzer
Dimensions 12″ x 15″ x 13″ (30.5 cm x 39.7 cm x 34.9 cm)
Data Storage Data automatically logged and stored Standard TCP/IP connection for integration into Lab Network and existing LIMS
Distillation Systems
MINIDIS ADXPERT AUTOMATIC MINI-DISTILLATION SYSTEM
MINIDIS ADXPERT AUTOMATIC MINI-DISTILLATION SYSTEM Image

This true atmospheric distillation analyzer is extremely compact, portable and light weight and operates as a fully stand-alone unit. Designed for the quick and accurate quality control in laboratories and in the field, a distillation run on light products takes just 15 minutes and requires as little as 6 mL of sample. Because of its small size, the portable mini-distillation apparatus is the ultimate solution for places where limited or no lab-space is available.

MINIDIS ADXpert uses full automation from sample introduction to heating regulation, vapor temperature registration, volume measurement in the receiver compartment and calculation of the distillation curve from the raw data obtained during the test. This way it achieves the highest levels of accuracy, repeatability and reproducibility. The automatic operation involves simply inserting the filling tube into the sample container and pressing “RUN”. No sample preparation like cooling is necessary; neither special programming of the test conditions or prior distillation knowledge is required. Fully automatic cleaning programs and the use of inexpensive and disposable sample cups guarantee highest productivity and eliminate the need for manual cleaning of glassware.

MINIDIS ADXpert performs according to ASTM D7344, the New Mini-method for the Distillation of Petroleum Products at Atmospheric Pressure and generates detailed D86 test reports. The distillation apparatus has a resolution almost twice as good as D86 distillation units, yielding results that are well within ASTM D86 r/R requirements. The extremely versatile unit allows precise testing of various gasoline, jet fuel and diesel products (groups 0-4), biofuels, solvents, aromatics, organic liquids, chemicals and contaminated or blended samples.


Revolutionizing ASTM D86 Testing

The automatic distillation analyzer MINIDIS ADXpert is revolutionizing ASTM D86 testing. It is a true atmospheric distillation analyzer in an extremely small format. The automation significantly improves the repeatability and the reproducibility of the highly precise results. The MINIDIS offers a detailed ASTM D86 compliant report and prints and/or transmits the results via a serial PC link.


Outstanding: Highest Safety

Broken glassware is one of the major reasons for fire hazards experienced when distilling with glass flasks. Because of the rugged metal housing, the sealed metal distillation cycle and the small sample volume, the MINIDIS ADXpert does not need a fire protection system. Cheap and durable metal sample cups instead of expensive glass flasks significantly reduce consumable costs and make the MINIDIS ADXpert a perfect solution for distillation testing within challenging environments.


Full Automation for Highest Productivity

The MINIDIS ADXpert provides a complete distillation run and test report in 15 minutes (for gasoline) using only 6 mL of sample. The automatic operation involves simply placing the filling tube into the sample and pressing “RUN”. No special programming of test conditions or prior distillation test knowledge is required. With the automatic sample introduction, the pre-programmed rinsing cycle and the use of disposable sample cups, any test preparation or manual cleaning of glass parts is avoided.


Unmatched Versatility

Applicable for gasoline, jet fuel and diesel products (groups 0-4), biofuels, solvents, aromatics, organic liquids, chemicals and contaminated or blended samples. Fast measurements, automatic cleaning and close to no waste allow for versatile applications in laboratories, at-line or in Mobile Labs.


Problematic Samples? No Problem!

Classical D86 distillation analyzers often encounter so called “problematic” samples. Mining solvents, condensates and raffinates for example cannot be measured by a D86 analyzer in most cases. MINIDIS ADXpert incorporates a versatile temperature control for a very small sample volume, which allows easy and fast heater adjustment. So even “problematic” samples can be distilled until the final boiling point is reached! The highly accurate volume detection system allows for precise and repeatable analysis of Biofuels and vegetable oils mixtures.


True Portability for All Applications

MINIDIS ADXpert performs according to the new D7344 standard for true atmospheric distillation. Results of the MINIDIS ADXpert excellently match D86, ISO 3405, IP123 and DIN51751 results. Fully automatic measurements, the temperature controlled sample introduction and a sophisticated automatic heating program eliminate sources for D86 distillation operator bias.

MINIDIS ADXpert features true portability, the rugged housing and optional 12V vehicle battery operation, making it the perfect solution for all kinds of applications, where standard laboratory instrumentation can not be applied – such as measurements in the field or in mobile laboratories.


Features

  • Excellent correlation to ASTM D86, ASTM D850, ISO 3405, IP 123, IP 195; Groups: 0 to 4
  • Performs exclusively according to the small scale distillation standard ASTM D7344
  • Automatic Measurement of Unknown Samples (no prior knowledge about the distillation group required)
  • New Method for Biodiesel detection
  • True atmospheric distillation
  • Dry Point detection
  • Automatic temperature controlled (Peltier) sample introduction system: no loss-errors due to manual sample handling
  • Use of disposable, cheap metal sample cups
  • User dialogue assures easy operation and guides operator through instructions for handling and calibration
  • Fast & easy operation, fully automatic cleaning program
  • Built-in pressure sensor for automatic barometric correction
  • Built-in balance for accurate residual determination
  • Highly accurate volume detection
  • 10 different pre-installed programs for each group (0 to 4)
  • Special distillation points can be pre-defined
  • Test temperature: up to 400°C (up to 752°F)
  • Temperature resolution: ±0.1°C (±0.18°F)
  • Measuring sample volume: 6 ml
  • Rinsing sample volume: app. 15 ml
  • Measuring time: 15 minutes (gasoline)
  • Portable and rugged design for field use
  • Large graphic display
  • Serial2LAN-converter (option)
  • PC/printer interface and standard PC-keyboard connector
  • USB interfaces for enhanced connectivity and data Transfer

Technical Data

Display  large graphics display, backlit
Test Temperature 0 – 400°C (32 – 752°F)
Temperature Resolution  +/-0.1°C (0.18°F)
Measuring Sample Volume 6 mL
Rinsing Sample Volume ~15 mL
Measuring Time (Gasoline) 15 minutes
Accuracy of Built-in Balance +/-0.003 g
Communication Languages German, English
Power Requirements 100/110/230/240 V AC, 50/60 Hz, 200 W
Field Application 12 V/10A DC (vehicle battery)
W x H x D 253 x 368 x 277 mm (10″ x 14.5″ x 10.9″)
Weight 20 kg (44 lb)
PILODIST 107 SOLVENT RECOVERY
PILODIST 107 SOLVENT RECOVERY Image
PILODIST 107 is an easy to handele solvent recovery system for extremely pure solvents. The solvent mixtures are side products of extraction’s, washing processes, chemical and biochemical reactions, chromatographic operations in clinical range, especially in anatomical and pathological institutes. Solvent Recovery Unit with Concentric-Tube-Column. The system is equipped with a concentric-tube-column, i.e. highest separation efficiency and high load ranges.

Characteristics:

  • Trouble-free operation due to static all glass contruction
  • All-glass construction
  • System is mounted in a safety cabinet with transparent front door.

Applications:

All kind of solvents like acetone, DMF, THF, parrafins,Xylenes, alcohol’s, acetonitriles, isooctane, hexane, methyl chloride and other HPLC-solvents.

PETRODIST 150S RECOVER BITUMEN FROM CRUDE OIL
PETRODIST 150S RECOVER BITUMEN FROM CRUDE OIL Image

The processor controlled crude oil distillation system includes control of heating and vacuum as well as the display and storage of all important process values: The design is based on the distillation of a charge of 10 – 20 kg of crude oil in a minimum of time with a high throughput until a final temperature of 400 °C AET.

  • Temperature of heating bath (PT 100)
  • Temperature of product in flask (PT 100)
  • Temperature of vapor (PT 100)
  • Pressure of distillation (0-100Torr)

The crude oil is charged into a stainless steel flask and heated by an electrical heating bath. All vapors are passing through a  stainless steel column and are condensed in an integrated vertical condenser. An additional high performance condenser  which is located on top of the column construction is required to condensate all remaining light boiling components.

All condensed product is being discharged by means of a tempered gear pump into a tank (receiver) or a fraction collector. The discharge process is being performed independent from the current system pressure (atmospheric or vacuum) to avoid any manual discharge in between the different pressure conditions.

The whole processing of the distillation can be visualized all the time by glass connecting pieces, a viewing glass in the flask, condenser and glass intermediate discharge receiver, located between pump and column. The distillation is performed in several pressure steps (atmospheric and vacuum) until a final atmospheric equivalent temperature (AET) of 400°C. Once the final temperature is reached and distillation is

Petrodıst 500Q SEMI-AUTOMATIC DISTILLATION
Petrodıst 500Q SEMI-AUTOMATIC DISTILLATION Image

Following an increasing demand for crude oil distillations to analyze small quantities in a short period of time PILODIST has modified the existing HRS 500 system to be applied for the purpose of crude oil distillation at a very attractive price.

Although the distillation column is packed with Propak 316 and the controller allows to perform all required distillation runs (atmospheric and vacuum 1 – 3) the system is similar but not strictly designed  according to ASTM D-2892 – standard. The system can be operated alternatively with fraction collector or with the intermediate receiver for larger cut volumes as well as the determination of the actual distillation rate. Both collection systems are included in the scope of supply.

The purpose of this system is to get a quick analysis of the composition of crude oil for further decisions.

  • Bench scale crude oil distillation system for semi-automatic operation
  • Quick distillation of small crude oil charges
  • Approx. 2 hrs. for complete distillation (depending on crude oil)
  • Fraction collector for automatic or manual operation
  • Operation stages follow ASTM D-2892: ATM, 100 torr, 10 torr, 2 torr
  • Column efficiency similar to ASTM D 2892
PETRODIST 600 COMPLETE CRUDE OIL DISTILLATION SYSTEM
PETRODIST 600 COMPLETE CRUDE OIL DISTILLATION SYSTEM Image

Combining 3 different internationally accepted ASTM procedures in 1 single system:

  • ASTM D-2892
  • ASTM D-5236
  • ASTM D-1160

The crude oil distillation system is designed to work in semi-automatic operation mode and combines all required features of PETRODIST 100 S, PETRODIST 200 S and PETRODIST 300 M in a single system in the most economical way. One distillation procedure can be used at a time (alternatively but not simultaneously) by using the following central components which are used by all distillation methods. These common devices include the fraction collector (not for D-1160), central controller and laptop, vacuum supply and cooling thermostat.

The capacity of the fraction collector can be verified depending on the flask volume by exchanging the insert construction to allow either 18 receivers of 500 mL or 9 receivers of each 1 L.

All distillation results can be entered into an Excel file to be stored as well as for calculation of final results and printout of a distillation curve.

PETRODIST 400 COMPLETE CRUDE OIL DISTILLATION
PETRODIST 400 COMPLETE CRUDE OIL DISTILLATION Image

Processor controlled combined crude oil distillation system for fully automatic operation according to ASTM D-2892 (TBP) and ASTM D-5236 (Potstill). PETRODIST 400 CC is a combination of the following systems:

  • PETRODIST 100 CC (ASTM D-2892)
  • PETRODIST 200 CC (ASTM D-5236)

Both systems can operate at the same time (simultaneously) in fully automatic, uninterrupted and unattended mode.

The data evaluation software provides also a combined TBP-curve for both systems.

Compact design with control system and safety items for unattended operation. No operator intervention and no intermediate stops are required. All necessary accessories will be supplied together with the system. The installation requires water, nitrogen, compressed air and electricity.

The system enables to perform TBP- and Potstill – distillations of various crude samples according to ASTM-standards and is designed for laboratory use.

The system is equipped with a central computer control, vaccum supply and thermostate system, data storage and evaluation station as well as a fraction collector, designed to serve for both distillation systems simultaneously and provides direct automatic distillation flow rate control.

The fraction/receiver changes are automatically performed according to preselected cut temperatures or in case of receiver overfilling. Both systems are equipped with individual fraction collectors to allow simultaneous operation of both systems. The final data and the TBP-curve in wt% and vol% are printed out after reweighing the residue.

The unit requires water, nitrogen, compressed air and electricity. Dry ice or liquid nitrogen is required for cold traps.

PETRODIST 200 CRUDE OIL DISTILLATION SYSTEM
PETRODIST 200 CRUDE OIL DISTILLATION SYSTEM Image

Processor controlled crude oil distillation system for fully automatic operation according to ASTM D-5236 (Standard Test Method for Distillation of Heavy Hydrocarbon Mixtures, Vacuum Potstill Method).

This new edition is summarizing our long term experience and taking into account all our customers feedbacks for improved performance and even more easy handling and reduced service necessity. The new design specifically highlights the high viscous residues that are being processed in this system by guaranteeing a continuously operating tempered discharge into an open fraction collector with automatic and precise weight measurement.

The system is designed for fully automatic operation and evaluation. No user intervention required during the distillation process. Data station for data input as well as for display and print out of all operation parameters, distillation results and distillation curve.

The weight of each fraction is automatically taken by an integrated precision electronic balance.

The product is being discharged by means of a heated hermetically closing discharge pump. The fraction changes are carried out automatically, alternatively according to a pre-selected boiling temperature or distillate weight or when the receivers are filled up. The fraction collector contains 20 receivers. The boil up rate is controlled according to a pre-selected distillation rate in g/min. An accurate vacuum control guarantees the required stability of the distillation pressure.

Vacuum System to improve automatic pressure reduction, following the dynamic vacuum pressure procedure described on method ASTM D 5236.

All necessary accessories will be supplied together with the system. The installation requires water, nitrogen, compressed air and electricity.


Technical Data


flask-size Flask sizes 2, 4, 6, 10, 20 L
diameter Receiver capacity 12 x 500 ml (24×250 ml upon request)
temperatur Operating temperature up to 400° C (750° F)
temperatur Final cut temperature up to 565° C AET (1050° F)
temperatur Max ambient temperature 25° C
pressure Operating pressure vacuum down to 0.1 Torr
stromversorgung Mains supply 3 x 208 – 250 V, 50 Hz (60 Hz upon request)
efficiency Power consumption 5000 W
dimensions Dimensions (w x h x d) 1.81 x 2.03 x 0.87 m
PETRODIST 100 CRUDE OIL DISTILLATION SYSTEM
PETRODIST 100 CRUDE OIL DISTILLATION SYSTEM Image

Crude oil distillation system for semi-automatic operation exactly according to ASTM D-2892 (TBP).

The system is designed for automatic operation within each of the following distillation runs:

  • Debutanization
  • 1. run at athmospheric pressure
  • 2. run at vacuum 100 Torr
  • 3. run at vacuum 10 Torr
  • 4. run at vacuum 2 Torr

After each run, the system stops automatically and the flask temperature has to be cooled down prior to the next distillation run. The operator has to enter the parameters for the next run to restart operation. The system contains a vacuum tight automatic fraction collector with 9 receivers for each run, which have to be replaced after each distillation run. The receiver change is performed according to pre-selected boiling temperature or when a receiver is filled up.


Key Features

  • Microprocessor controlled, based on multifunctional serial bus system
  • PC with windows based operation and evaluation software
  • Continuous monitoring of distillation process
  • Continuous report and data storage
  • Flask heater control by differential temperature, differential pressure, power regulation or preselected fixed temperature
  • All distillation parameters can be exactly and reproducibly selected
  • Automatic receiver change by preselected cut temperatures
  • Debutanization process manually
  • Cooling down process manually after each run
  • Precise vacuum control

Options

  • Stainless steel flask
  • Immersion cooler for vacuum cold traps and gas trap

PETRODIST 300 CRUDE OIL DISTILLATION SYSTEM
PETRODIST 300 CRUDE OIL DISTILLATION SYSTEM Image

Fully automatic crude oil distillation system, processor controlled according to ASTM D-1160  for the determination of boiling ranges of crude oil products under vacuum. The system can be operated in strict accordance to the ASTM procedure with 1 single receiver or alternatively, by using the automatic fraction collector, with 4 receivers.


Key Features

  • Parameter input, display as well as calculation of distillation and final data and print out of the distillation curve via PC
  • Easy operation due to userfriendly software, operated under WINDOWS XP
  • Sophisticated safety system
  • Automatic heating and distillation rate as well as detection of initial boiling point (ibp)
  • Individual distillation reports and curves can be re-called any time
  • Precise distillation data due to automatic calibration of volume measuring system
  • Anti foaming by foam breaker
  • Precise vacuum control
  • Automatic washing run
  • Calculation of charge according to receiver temperature and charge density
  • Easy installation effort as the system is delivered ready for operation
  • Manual override of automatic operation
  • Automatic controlled termination of distillation process and start of cooling
  • automatic fraction collector with 4 receivers (Petrodist 300CC-F)

The distillation is fully automatic from the initial boiling point to the pre-selected end boiling point or detected break-off. The criteria for break-off are:

  • The pre-selected final AET (atmospheric equivalent temperature) is reached
  • The maximum bath temperature is reached
  • The maximum flask temperature is reached
  • The pre-selected distillate volume is reached
  • The flask insert cracks
  • The distillate pressure drops
  • Product lack in the flask

The distillation volume is measured automatically in receivers, temperature controlled by an IR-heater. The yield is calculated in percentage to the charge quantity. Distillation report, final data and distillation curve are printed out.

There are manual, semi-automatic and full-atomatic models of Petrodist 300 Series. Fractional collecter is provided with 300CC-F model.

1120CC COOLANT DISTILLATION SYSTEM
1120CC COOLANT DISTILLATION SYSTEM Image

The system is designed for fully-automatic operation conforming to ASTM-D1120 to determine very precise and reproduceable the boiling point of engine coolants and brake fluids.

A complete test can be done in approx. 8-15 minutes. An indelible print out with all results is peformed automatically and additionally a PDF-file can be created for network connectivity.

PILODIST 1120 CC can be operated in different measuring modes to be selected via an integrated touchpanel. All parameters are indicated during the measuring process as well as the results. The basically included test methods are:

  • REFLUX BOILING POINT (ASTM-D1120)
  • EQUILIBRIUM REFLUX BOILING POINT (SAE-J1704)

As a special feature there is an additional software available for measurements also the following characteristics according to SAE-J1703 & J1704:

  • WET BOILING POINT
  • CHEMICAL STABILITY
  • HIGH TEMPERATURE STABILITY

All methods are also valid for the test standards:

  • ISO 4925
  • FMVSS 116

For more information and all technical details, please contact us.

PILODIST 250 CONTINOUS DISTILLATION SYSTEM
PILODIST 250 CONTINOUS DISTILLATION SYSTEM Image

The system has been designed to operate under atmospheric  as well as vacuum conditions down to 1 Torr in continuous and discontinuous (batch) mode by using either a circulation evaporator with level sensors or a distillation flask with electrical heating mantle. This specific system is completed with an automatic fraction collector which operates 10 receivers. It is designed with 4 distillation columns with silvered high-vacuum mantle and packed with SULZER packing and additional electrical column heating mantles to ensure adiabatic operation.

PILODIST 250 systems are designed by our engineering team according to specific customer needs to fulfill specific research or training projects. The variable includes the number of distillation columns, type and diameter of distillation column (bubble cap tray column or packed columns) for different throughputs, the number of feed and product take-off (discharge) points just to mention some criterias, all details being engineered depending on the job definition.

Lubricity Analysis
BOCLE 5001 LUBRICTY ANALYZER
BOCLE 5001 LUBRICTY ANALYZER Image

Fully Automatic Test Equipment for Measurement of Lubricity of Aviation Turbine Fuels by the Ball-on-Cylinder Lubricity Evaluator according to ASTM D-5001.

The BOCLE-equipment according to ASTM D-5001 measures the actual wear scar size with a test ball specimen. The wear scar is generated by the friction between the stationary ball and a rotating cylinder. A part of the rotating cylinder is immersed in the turbine fuel tank (50 ml) and covered with the turbine fuel. The temperature of the fuel tank is controlled, as well as the relative humidity of the air which is circulated into and above the test fluid – the air flow rate is controlled, too. The Test Ball is loaded by a constant weight for the test period 30 min. After the test the minor & major axis of the resultant wear scar are measured with a microscope. The wear scar defines the lubricity of the aviation turbine fuel or other liquids.

No additional tools are required for an easy and convenient handling!

Sulfur Analysis

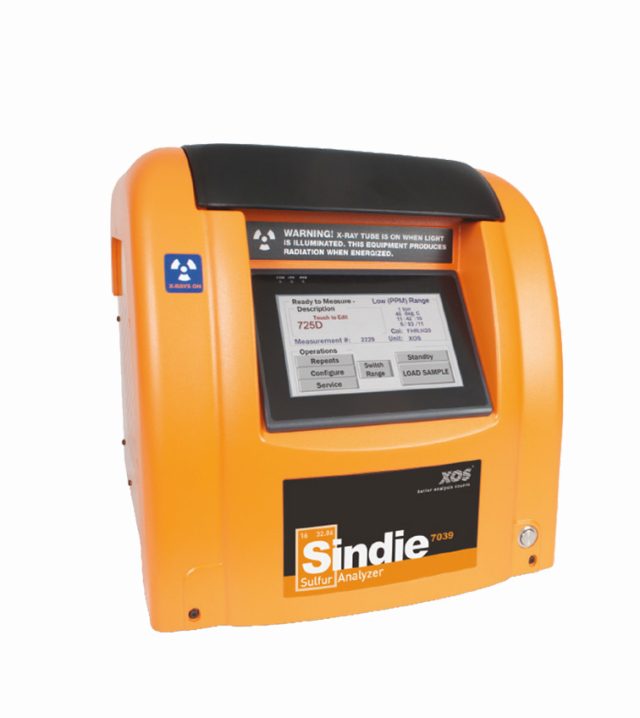

SINDIE 7039 SULFUR ANALYZER
SINDIE 7039 SULFUR ANALYZER Image

The Sindie® 7039 Benchtop model is specifically designed for fast batch testing from 0.15 – 3000 ppm (wt.) sulfur fuel samples at petroleum pipeline terminals, refineries, and test laboratories. The unit is compact and fits on any lab bench with an easy-to-use and robust design for industrial and laboratory use with minimal maintenance. The Sindie ® analyzer has many advantages over competing technologies. The analyzer has exceptional signal-to-noise using monochromatic excitation of the X-ray source characteristic line. It does not require consumable gases or high-temperature operations improving the analyzer’s robustness and reliability.

Sindie 7039 Benchtop complies with ASTM Standard D-7039. Sindie ® 7039 Benchtop meets or exceeds the performance of other X-ray fluorescence-based ISO and ASTM test methods including ISO 20884, for the measurement of sulfur in refinery fuels.


The main features of the Sindie ® 7039 benchtop petroleum analyzer include:

  • Direct measurement without sample conversion; Analysis in ppm (wt)
  • LOD: 0.15 ppm
  • Dynamic Range: 0.15 ppm to 3000 ppm
  • Outstanding linearity: One calibration for diesel and gasoline matrices over full dynamic range
  • Fast measurement time: 300 seconds
  • No consumable gases required
  • Extremely low maintenance
  • Autosampler utilizes XOS Accu-Cell cup

MWD XRF Monochromatic Wavelength Dispersive X-Ray Fluorescence (MWD XRF) utilizes state-of-the-art focusing and monochromating optics to increase excitation intensity and dramatically improve signal-to-background over high power traditional WD XRF instruments. This enables significantly improved detection limits and precision and a reduced sensitivity to matrix effects. A monochromatic and focused primary beam excites the sample and secondary characteristic fluorescence x-rays are emitted from the sample. A second monochromating optic selects the sulfur characteristic x-rays and directs these x-rays to the detector. MWD XRF is a direct measurement technique and does not require consumable gasses or sample conversion.


Technical Data


LOD 0.15 ppm at 300 s
Dynamic Range, Standard 0.15 ppm to 3000 ppm
Dynamic Range, XR Package 0.15 ppm to 10%
Test Methods ASTM D7039 and ISO 20884
Dimensions 37 cm (w) x 50 cm (d) x 34 cm (h)

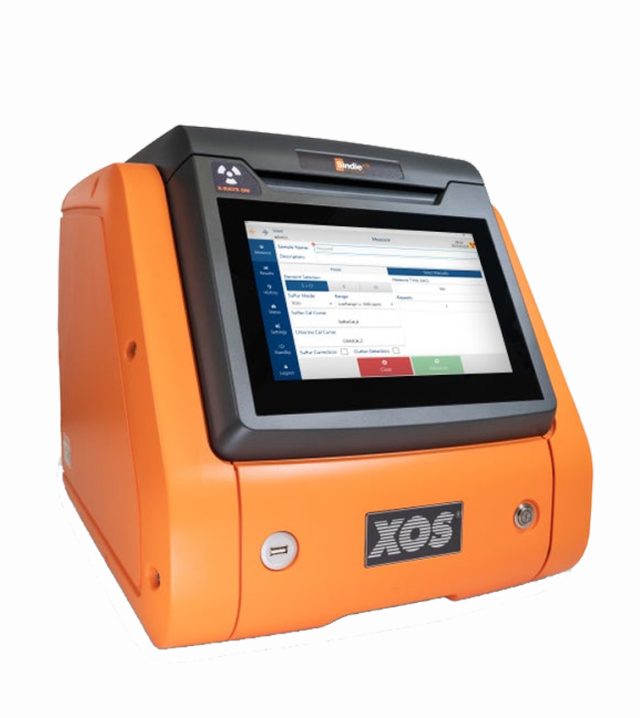

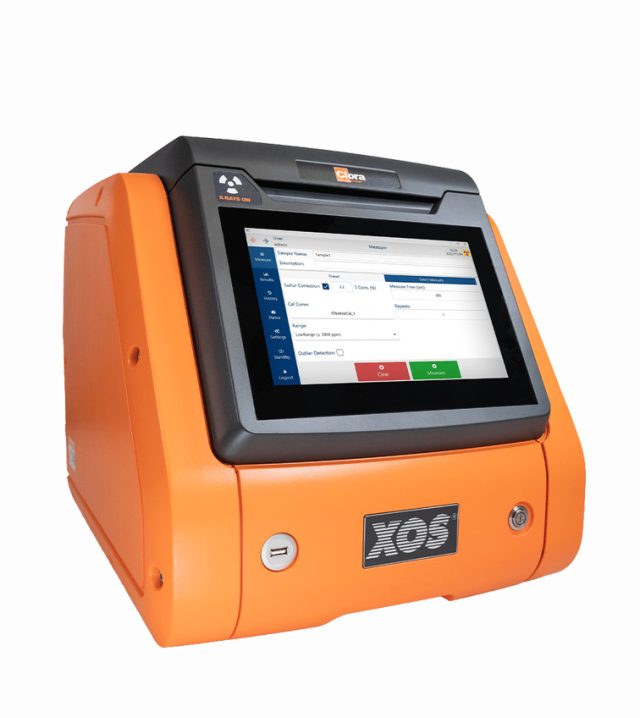

Sindie +Cl
Sindie +Cl Image

TWO critical measurements, ONE push of a button, ZERO hassle

Sindie +Cl is a two-in-one instrument enabling trace analysis of both sulfur and chlorine with one push of a button. It is the ideal solution to certify sulfur levels in finished products, assess chlorine for corrosion mitigation, and optimize process parameters.


Application Areas:

  • Total sulfur analysis from ultra low sulfur fuels to crudes.
  • Total chlorine analysis from aqueous solutions and aromatic products to heavy fuels, crudes, and catalyst.
  • For use in refinery labs, pipeline terminals, additive plants and inspection laboratories.
  • Complies with ASTM D2622, D7039, D7536, and SH / T 0842.

Features and Benefits:

Sulfur

  • LOD: 0.4 ppm at 300 s.
  • Dynamic Range: 0.4 ppm to 5%

Chlorine

  • LOD: 0.3 ppm at 300 s.
  • Dynamic Range: 0.3 ppm to 3000 ppm

Extremely low maintenance: no conversion gasses, heating elements, columns, or quartz tubing

Automatic sulfur correction for chlorine.

Easy to use

  • Intuitive touch screen
  • Just plug-in and measure
  • Measurement time: 30-900s

Fits on any bench:

  • 37 cm (w) x 50 cm (d) x 34 cm (h).

Trusted Precision Using the industry’s most advanced optics, doubly curved crystals, Sindie +Cl achieves a high signal-to-background ratio for the most reproducible results. Monochromatic Wavelength Dispersive X-Ray Flourescence (MWDXRF) using doubly curved crystal optics has the advantage of very high sensitivity and precision. This technique has been successfully used to deliver very precise measurements of low levels of sulfur and chlorine.

PETRA EDXRF SULFUR ANALYSIS SYSTEM
PETRA EDXRF SULFUR ANALYSIS SYSTEM Image
Petra 4294 delivers high-precision D4294 sulfur analysis across a broad measurement range. Petra 4294 offers advanced precision with HDXRF, advanced reliability, and advanced software and data management. Petroleum laboratories depend on reliable, robust analytical solutions for their fast-paced environment. Petra 4294 was designed to meet these needs with an innovative sample introduction system that directs accidental spills to a drip tray and away from valuable components.
Petra 4294 complies with ASTM D4294, ISO 8754 and IP 336 methods for sulfur analysis of hydrocarbons like crude oil, diesel, gasoline, jet fuel, and lubricants.
Petra MAX delivers D4294 sulfur analysis in addition to 12 elements from P to Zn, for rapid monitoring of critical elements like Ca, Fe, K, Ni, and V at sub-ppm levels. Petra MAX offers advanced precision with HDXRF, advanced reliability, and advanced software and data management. Petroleum laboratories depend on reliable, robust analytical solutions for their fast-paced environment. Petra MAX was designed to meet these needs with an innovative sample introduction system that directs accidental spills to a drip tray and away from valuable components.

  • Advanced Sulfur Analysis with HDXRF
  • Advanced Precision
  • Advanced Reliability & Robustness
  • Advanced Software
  • Advanced Data Management
X-RAY Fluorescence (XRF) Systems
CLORA CHLORINE ANALYZER
CLORA CHLORINE ANALYZER Image

Chlorine Analysis in Liquid Hydrocarbons, Aqueous Solutions and Catalyst

The Clora Benchtop analyzer is designed for use with liquid hydrocarbons such as aromatics, distillates, heavy fuels and crude oils, as well as aqueous solutions. The enhanced precision of Clora is ideal for testing related to catalyst poisoning in reformers or for sites with fluid catalytic crackers and hydrocrackers monitoring very low levels of chlorine.

MWD XRF

Monochromatic Wavelength Dispersive X-Ray Fluorescence (MWD XRF) utilizes state-of-theart focusing and monochromating optics to increase excitation intensity and dramatically improve signal-to-background over high power traditional WD XRF instruments. This enables significantly improved detection limits and precision and a reduced sensitivity to matrix effects. A monochromatic and focused primary beam excites the sample and secondary characteristic fluorescence x-rays are emitted from the sample. A second monochromating optic selects the chlorine characteristic x-rays and directs these x-rays to the detector. MWD XRF is a direct measurement technique and does not require consumable gasses or sample conversion.


Tehnical Data


LOD 0.07 ppm wt. in hydrocarbons
Dynamic Range 0.07 ppm wt. up to 3000 ppm wt.
Test Methods ASTM D7536
Dimensions 37 cm (w) x 50 cm (d) x 34 cm (h)
PHOEBE PHOSPHORUS ANALYZER
PHOEBE PHOSPHORUS ANALYZER Image

From crude oil to bio-fuels in additives or water, the Phoebe®  Bench-Top Analyzer delivers unprecedented precision and accuracy for quantification of phosphorus analysis. Based on XOS’s MWD XRF analytic platform, (as found in Sindie ®  and Clora ®analyzers) Phoebe ® offers a LOD of 0.4 ppm in hydrocarbon matrices in a ten-minute measurement cycle.

The analyzer’s extreme ease of use with straightforward touch screen operation allows for use in a broad range of industrial environments. Phoebe ® is a “plug it in and measure” analytical solution and does not require extensive sample preparation, consumable gasses or sample conversion.


MWD XRF

Monochromatic Wavelength Dispersive X-Ray Fluorescence (MWD XRF) utilizes state-of-the-art focusing and monochromating optics to increase excitation intensity and dramatically improve signal-to-background over high power traditional WD XRF instruments. This enables significantly improved detection limits and precision and a reduced sensitivity to matrix effects. A monochromatic and focused primary beam excites the sample and secondary characteristic fluorescence x-rays are emitted from the sample. A second monochromating optic selects the phosphorus characteristic x-rays and directs these x-rays to the detector. MWD XRF is a direct measurement technique and does not require consumable gasses or sample conversion.
Technical Data
LOD 0.4 ppm in 600s.
Dynamic Range 0.4-3000 ppm wt.
Dimensions 37 cm (w) x 50 cm (d) x 34 cm (h)
SIGNAL SILICON ANALYZER
SIGNAL SILICON ANALYZER Image

From gasoline to ethanol and toluene, the Signal benchtop analyzer delivers unprecedented precision and accuracy in quantitative analysis of silicon in petroleum. The analyzer is based on XOS’s MWDXRF technology platform (as applied in Sindie® and Clora® analyzers) ensuring a robust analysis solution for demanding petroleum and industrial evironments.


Silicon (Si) contamination continues to impact fuel quality, resulting in costly engine failures and catalyst fouling. ASTM test method D7757 compliant, the Signal uses proven, state-of-the-art technology to provide exceptional Si analysis.

  • Know the contamination sources and develop working solutions.
  • Understand the impacts of Si contamination on your business.
  • Determine your Si baseline for future specifications set by ASTM or the end user.

MWD XRF Monochromatic Wavelength Dispersive X-Ray Fluorescence (MWD XRF) utilizes state-of-the-art focusing and monochromating optics to increase excitation intensity and dramatically improve signal-tobackground over high power traditional WD XRF instruments. This enables significantly improved detection limits and precision and a reduced sensitivity to matrix effects. A monochromatic and focused primary beam excites the sample and secondary characteristic fluorescence x-rays are emitted from the sample. A second monochromating optic selects the silicon characteristic x-rays and directs these x-rays to the detector. MWD XRF is a direct measurement technique and does not require consumable gasses or sample conversion.


Tehnical Data
LOD 0.5 ppm at 600 s
Dynamic Range 0.5 ppm to 3000 ppm
Test Methods ASTM D7757
Dimensions 37 cm (w) x 50 cm (d) x 34 cm (h)
HD MAXINE XRF ELEMENTAL ANALYZER
HD MAXINE XRF ELEMENTAL ANALYZER Image

HD Maxine ® assures precise determination of trace metals in crudes, lubricants and used oils without extensive sample preparation or expensive consumables. The analyzer enables the direct analysis of metals from Phosphorus to Lead, at unprecedented detection limits in a robust analyzer configuration designed to perform in demanding petroleum and industrial environments.


Plug it in and measure. Results with one touch. Unrivaled precision.

  • Multi-element analysis
  • Detecting zinc in crudes
  • Hydrocarbon analysis
  • Exceptional detection performance for critical elements
  • No sample preparation
  • No acid digestion required
  • Results in less than 10 minutes
  • Lab and production applications

HDXRF High Definition X-Ray Fluorescence (HD XRF) is a multi-element analysis technique offering significantly enhanced detection performance over traditional ED or WD XRF. This technique applies state-of-the-art monochromating and focusing optics, enabling multiple select-energy excitation beams that efficiently excite a broad range of target elements in the sample. Monochromatic excitation dramatically reduces scattering background under the fluorescence peaks, greatly enhancing elemental detection limits and precision. HDXRF is a direct measurement technique and does not require consumables or special sample preparation.


  Technical Data
Elements S, Cl, P, K, Ca, V, Mn, Fe, Co, Ni, Cu, Zn, Hg, As, Pb, Se
Analysis Range Up to 5000 ppm
Measurement Time 300 s or 600 s
Dimensions 39 cm (w) x 53 cm (d) x 41 cm (h)
Gas Chromotography
CALIDUS GAS CHROMATOGRAPH
CALIDUS GAS CHROMATOGRAPH Image

In the lab, in the process, in the field – the CALIDUS Gas Chromatograph is fast becoming the leading choice for GC applications in a wide variety of industry and environmental applications.

With the ultrafast, ultra-user-friendly, highly durable, practical, reliable and economical CALIDUS GC you will find more measurement solutions faster and easier, produce better quality products, increase productivity and profitablity, with far less hassle and environmental impact.

Whether you are directly involved in fuel characterizations or not, the new D7798 method is important to you. If you are directly involved in fuel characterizations, D7798 is vitally important to your industry. This ultrafast method can perform simulated distillation nearly 6 times faster than the previous method (D2887).

Crude oil is a valuable and vital resource in our lives. Crude is refined to create fuels, petrochemicals and further refined chemicals that are processed into many widely used industrial and consumer products.

With its patented modular columns and detectors platform, application range is second only to analytical speed in the list of CALIDUS GC advantages.

Consider these diverse capabilities:

  • Gas or liquid samples
  • Fixed gases & hydrocarbons up to C44
  • Petroleum products & biodiesel formulations up to C50
  • FID, TCD, DBD, or FPD detector modules
  • Rotary sample valve or syringe
  • Single column module lengths up to 8 meters
  • Dual column module units up to 16 meters
ENVENT MODEL 131
ENVENT MODEL 131 Image
Designed to provide accurate and reliable measurements for a variety of the applications commonly found in the Oil and Gas industry. The Model 131 design offers many features while still offering a level of simplicity, affordability and reasonable delivery times that many end-users desire. Envents capability to provide customized sample conditioning systems, integration services and the necessary analytical accessories makes the Model 131 an excellent choice for many analytical process measurement requirements.
Specifications
  • Start or stop analyses and calibration cycles.
  • Generate and save current and historical analysis, raw data, and calibration reports.
  • Review and modify analytical settings.
  • Upload and display multiple chromatograms for comparison.
  • Upload, download and display months of archived data.
  • Setup independant automated stream switching.

Application Areas
  • Gas Processing: Plant Inlet, Sales/Outlet, Sour Gas Pipeline Blending.
  • Amine Units: H2S for sulfur balance/acid gas.
  • NGL Fractionation: De-ethanizer, De-propanizer and De-butanizer tops and bottoms.
  • C5+ Condensate.
  • C9+ with Hydrocarbon Dewpoint.
  • Waste and Fuel Gas Analysis.
  • Biogas and Landfill.
  • SAGD.
  • Custom Applications.
ENVENT MODEL 132
ENVENT MODEL 132 Image

Designed to provide accurate and reliable measurements for a variety of the applications commonly found in the Oil and Gas industry. The Model 132 design offers many features while still offering a level of simplicity, affordability and reasonable delivery times that many end-users desire. Envents capability to provide customized sample conditioning systems, integration services and the necessary analytical accessories makes the Model 132 an excellent choice for many analytical process measurement requirements.


Specifications

  • Start or stop analyses and calibration cycles.
  • Generate and save current and historical analysis, raw data, and calibration reports.
  • Review and modify analytical settings.
  • Upload and display multiple chromatograms for comparison.
  • Upload, download and display months of archived data.
  • Setup independant automated stream switching.

Applications Areas

Diverse stream compositions with dynamic ranges from percent to trace level measurement all encompassed in one GC. Typical Applications Include:

  • Gas Processing: Plant Inlet, Sales/Outlet, Sour Gas Pipeline Blending.
  • Amine Units: H2S for sulfur balance/acid gas.
  • NGL Fractionation: De-ethanizer, De-propanizer and De-butanizer tops and bottoms.
  • C5+ Condensate.
  • C9+ with Hydrocarbon Dewpoint.
  • Waste and Fuel Gas Analysis.
  • Biogas and Landfill.
  • SAGD.
  • Custom Applications.
Stability & Flocculation Analysis
PORLA STABILITY ANALYZER
PORLA STABILITY ANALYZER Image

Porla Analyser can analyse heavy and crude oils that cover extremely wide viscosity and asphaltene content ranges from very high to very low. Very often, low asphaltene content oils cause blending and process problems. In addition, the new Porla has an analysis programme for blending the parameter of asphaltene free oils and blend components. Furthermore, Porla is perfectly suited to the analysis of bitumen. Porla will report a comprehensive set of stability and compatibility parameters such as P-value, Pa, Po, FR5/1(toluene/xylene equivalent), FRmax, In and Sbn all in one operation.  As a result of the exceptionally wide applicability area, Porla will result in the biggest benefits and profitability increases to end-users.


The unique detector technology of New Generation Porla, based on the reflection of asphaltene sensitive light, facilitates the applying of a low dilution of oil samples, resulting in the accurate analysis of oils containing as little as 0.1% asphaltene and sometimes even lower. Other particles besides asphaltenes, such as coke, do not disturb the Porla analysis. Therefore, the removal of coke prior to analysis is not necessary.


New Generation Porla is a very useful and practical tool for planning and monitoring the blending of feedstocks/crude oils, heavy oil blending (from cracking bottoms and solvents), the blending of bitumen and optimisation of cracking units (e.g. thermal and hydrocracking) of oil refineries. In addition, New Generation Porla can also be used for monitoring visbreaking processes and the dilution of tar sands with light ends in the production fields of tar sand crudes.

Besides its unique performance in analysing the stability and compatibility parameters of low asphaltene content oils, the New Generation Porla Analyser includes an automatic procedure for analysing the ExxonMobil heavy and crude oil blending model parameter Sbn (solubility blending number) of asphaltene free oils and blend components.


We have made the New Generation Porla operation easy for end-users. Operation of the analysis programme is very simple and easy. The programme gives default values to the operator to prepare the stock solution, and there is no need to prepare more than one stock solution from oil to be analysed and an aromatic solvent.

We offer strong application development support for Porla end-users when commissioning the analyser at a customer site/laboratory. Our expert will remain at the customer’s laboratory for 4-5 days to give user-training and run a wide range of oil samples with the operator, which can be analysed in the laboratory. He will also give instructions concerning sample preparation and the running parameters of these oils. As a result of this service, the end-user has ready applications for different oil types and an understanding on how to built applications for possible new oil types. This service will ensure a smooth start for new Porla end-users.

Sometimes, some new oils to be analysed might seem challenging or the analysis results may look a bit peculiar. For those situations, we have a special service for our Porla users. The only thing the Porla end-user needs to do is send a sample to our application laboratory in Finland. We will analyse the sample free of charge in our laboratory, report the results and give instructions on how the oil sample can be prepared and successfully analysed in the future. The only cost that the end-user must pay is the transportation of the sample to our laboratory.

Cold Property Analysis
DR5 AUTOMATIC CLOUD, FREEZE, POUR POINT AND CFPP ANALYZER
DR5 AUTOMATIC CLOUD, FREEZE, POUR POINT AND CFPP ANALYZER Image

The DR5 is a cold properties analyzer. A unique interchangeable cartridge system allows cloud, pour, and CFPP on the same machine. The DR5 is single position. There are three types of cartridges: cloud, pour, and CFPP. Each DR5 comes with a single cartridge. Upon ordering, please specify which cartridge type to include. Additional cartridges can be bought as accessories. The DR5’s state-of-the-art cooling system allows temperatures from -120°C to 60°C. It cools at a rate of 1° C in 5 seconds or less. It maintains temperature of +- 1°C.


Features

  • Low consumption.
  • No calibration required.
  • Cloud, pour, and CFPP on a single machine.
  • Only 11 inches wide.
  • High resolution, tablet-style touchscreen.
  • Fully contained, maintenance-free refrigeration system.
  • View current test in real-time from a PC, tablet, or smartphone via wifi or ethernet.
  • Easily export test data to LIMS, flash drive, or web browser.
  • Print tests from machine.

In addition to standard tests, the machine can be set to maintain a certain temperature, which is convenient for various lab activities. Note: “Plunge Style” indicates a large initial drop in temperature and then maintaining that temperature. This allows for faster test results. It gives an approximation of the test result but is no substitute for ASTM tests. This was provide via customer request.


Technical Details

  • Dimensions: 11” wide, 19” high, 24” deep
  • Weight: 45 lbs
  • Power: 120V or 220V AC (specify upon ordering), 50 hz, 6.0 amps
TLC MANUAL CLOUD AND POUR POINT ANALYZER
TLC MANUAL CLOUD AND POUR POINT ANALYZER Image

Apparatus to determine the cloud and pour point manually conform ASTM D97 and ASTM D2500. The TLC adjustable circulator bath with position for six jackets. The pour point describes a procedure for testing the fluidity of a petroleum product at a temperature. The cloud point is defined as the temperature of a liquid specimen when the smallest observable cluster of wax crystals first appears upon cooling.


Technical Data


Test Method ASTM D97, ASTM D2500
Other Test Methods IP 15, IP 219, ISO3015, ISO3016
Bath Temperature Accuracy [± ] 0.05 °K
Maximum Temperature 20 °C
Minimum Temperature -80 °C
Bath Volume 14 litre
Bath Width 460
Bath Height 770
Bath Length 810
Bath Opening 240 x 170

Density Analysis
TLC 15 HYDROMETER METHOD DENSITY METER
TLC 15 HYDROMETER METHOD DENSITY METER Image

Complete ASTM D1298 set-up for three positions (including frame, cylinders, lids, tubing, connectors and TLC15-5 circulator). The set-up has a small footprint, detachable leakage tray and is easy to drain and clean. The set-up is made from stainless steel and offers complete sight over full hydrometer length.


Technical Data

Weight [kg] 40.0000
Mains 230V-50Hz
Test Method ASTM E126, ASTM D287, ASTM D1298, ASTM D6822
Other Test Methods IP 160, API 2547
Bath Temperature Accuracy [± ] 0.25 °C
Bath Volume 5 litre
D70 ASPHALT/BITUMEN DENSITY PYCNOMETER
D70 ASPHALT/BITUMEN DENSITY PYCNOMETER Image

This test method covers the determination of the relative density and density of semi-solid bituminous materials, asphalt cements, and soft tar pitches by use of a pycnometer. The sample is placed in a calibrated pycnometer. The pycnometer and sample are weighed, then the remaining volume is filled with water. The filled pycnometer is brought to the test temperature, and weighed. The density of the sample is calculated from its mass and the mass of water displaced by the sample in the filled pycnometer. The bath has place for nine pycnometers.


Technical Data


Weight [kg] 31.0000
Mains 230V-50Hz
Test Method ASTM D70
Other Test Methods IP 190, JIS K2265, ISO 3838, DIN 52 004
Bath Temperature Accuracy [± ] 0.02 °K
Maximum Temperature 250 °C
Minimum Temperature Ambient
Bath Volume 16
Bath Width 295
Bath Height 440
Bath Length 455
DENSITY 4/5 DENSITY METER
DENSITY 4/5 DENSITY METER Image

The Density4 and Density5 density meters continue  providing robust and reliable analytical analysis for the needs of many industries. With the push-of-a-button this instrument provides accurate density measurements of liquids for analysis and quality control. Condensed into a compact, robust, stand-alone unit, this density meter is a reliable workhorse for the laboratory, resisting damage from demanding applications. Instruments feature an exclusive plug and play replaceable pre-calibrated measurement cell exchange for the lowest maintenance costs and shortest downtime. These density meters easily combine with AR Series refractometers, AR9 and AR5, and polarimeters, Polar2 and Polar3, for the simultaneous determination of measurements.


Tehnical Data


Density4 Density5
Measuring Range 0-3 g/cm3 0-3 g/cm3
Temperature Range 5-95°C Peltier thermostat 5-95°C Peltier thermostat
Pressure Range 0-10 Bar (0-145psi) 0-10 Bar (0-145psi)
Density
Accuracy 0.0001g/cm3 0.00005g/cm3
Resolution 0.0001g/cm3 0.00001g/cm3
Reproducibility 0.0002g/cm 0.00002g/cm
Temperature
Accuracy 0.05°C 0.03°C
Reproducibility 0.02°C 0.01°C
Minimum Sample Amount 2ml 2ml
Measuring time per sample  < 10 sec. < 30 sec.
Filling Injection Injection
Interfaces USB and RS232 USB and RS232
Compliancy European and American Pharmaceutical, GMP/GLP and 21 CFR Part 11, ATSM, ISO and DIN standards European and American Pharmaceutical, GMP/GLP and 21 CFR Part 11, ATSM, ISO and DIN standards
Dimensions 12.5 x 9.25 x 8.5 inches (320 x 235 x 218mm) 12.5 x 9.25 x 8.5 inches (320 x 235 x 218mm)
Weight 22 lbs. (10 kg) 22 lbs. (10 kg)
Copper & Silver Corrosion
TC16 COPPER CORROSION ANALYZER
TC16 COPPER CORROSION ANALYZER Image

TC16 circulator with temperature range from ambient to 250°C, 115V-60Hz., temperature stability ± 0.02°C. Bath conforms to ASTM D130, ASTM D4048, ASTM D7095, EN/ISO 2160, DIN 51811, IP154 and IP112. It is equipped with a cover with six holes and lids for six test stations.


Technical Data


Weight [kg] 21.0000
Mains 115V-60Hz
Test Method ASTM D130, ASTM D4048, ASTM D7095
Other Test Methods IP 112, IP 154, EN/ISO2160, DIN 51811
Bath Temperature Accuracy [± ] 0.02°C
Maximum Temperature 250°C
Minimum Temperature 5°C
Bath Volume 16
Bath Width 295
Bath Height 440
Bath Length 455
Bath Opening 6 x 51
TB30 LPG COPPER CORROSION
TB30 LPG COPPER CORROSION Image

TB30 bath with temperature range from ambient to 80°C, 230V-50Hz~60Hz, temperature stability ± 0.02°C. Bath is conform ASTM D1838, EN/ISO 6251, IP411, BS2000 Part 411, BS6924, NF M41-007 and is specifically designed to hold a temperature stable at 37.8°C without the use of an external circulator. The bath is deep enough to accommodate four corrosion test cylinders in an upright position.



TC16 SILVER CORROSION SYSTEM
TC16 SILVER CORROSION SYSTEM Image

TC16 circulator with temperature range from ambient to 250°C, 230V-50Hz~60Hz, temperature stability ± 0.02°C. Bath conforms to ASTM D4814, ASTM D7667, ASTM D7671, IP 227, and IP 611. It is equipped with a cover with six holes and lids for six test stations.

Methods specify the determination of the corrosive tendencies towards silver, of aviation turbine fuels, automotive spark-ignition engine fuels, or automotive gasoline. The result is classified as an integer in the range 0 to 4.


Technical Data

Weight [kg] 21
Mains 230V-50Hz~60Hz
Test Method ASTM D4814, ASTM D7667, ASTM D7671
Other Test Methods IP 227, IP 611
Bath Temperature Accuracy [± ] 0.02°C
Maximum Temperature 250°C
Minimum Temperature 5°C
Bath Volume 16 litre
Bath Width 295
Bath Height 440
Bath Length 455
Bath Opening 6 x 51
TC40 COPPER CORROSION OF AROMATIC HYDROCARBONS
TC40 COPPER CORROSION OF AROMATIC HYDROCARBONS Image

TC40 set-up for D849 to determine the corrosiveness to copper from aromatic hydrocarbons. . The set-up consists of a TC40 circulator bath and it is standard delivered with six sets of glassware (250 mL flask and condenser). The cover of the bath has six openings with lids and a leveling platform. Two stand rods with six clamps to hold the glassware in the same position are standartly supplied. The temperature range is from ambient +5°C to 250°C.


Technical Data


Weight [kg] 30
Mains 230V-50Hz
Test Method ASTM D849
Bath Temperature Accuracy [± ] 0.02 °K
Maximum Temperature 250 °C
Minimum Temperature Ambient
Bath Volume 40 litre
Bath Width 295
Bath Height 480
Bath Length 480
Bath Opening 6
Refractometers
AR5 REFRACTOMETER
AR5 REFRACTOMETER Image

The economical AR5 digital refractometer with Peltier temperature control included makes sophisticated measuring technology available to users on a tight budget. High-end accuracy and a good price point give customers an exceptional advantage in the laboratory. The AR5 is precise, measuring refractive index and % Brix with results accurate to 0.0001 RI and 0.05% Brix. The AR5 is the ideal instrument to perform routine measurements with standard scales and has the ability to be configured for custom measurements. The robust design, sapphire prism and reliable operation make it a workhorse for the laboratory, resisting surface damage from demanding applications.


Reichert AR5 Advantages

  • Accurate, fast and reproducible measurements
  • Flexible, modular – easily connects to Reichert density meters, Density5 and Density4 and polarimeters, Polar2 and Polar3, for additional measurements
  • Robust design for rough environments
  • Sapphire prism
  • Built-in solid state Peltier thermostat for accurate temperature control
  • Easy to clean and maintain with flat sample chamber
  • Easy to calibrate
  • Energy saving LED light source
  • Remote diagnostics and maintenance of data available

Technical Data

  • Prism – Sapphire
  • Light source – Lifetime LED, interference filter 589nm
  • Display – Two line visual display or Optional Universal Display 7″ color touchscreen
  • Interfaces – RS232, USB optional
  • Weight and dimensions  – 10.8 lbs. (4.9 kg), 8.2 x 8.2 x 6.3 inches (210 x 210 x 160mm)
Measuring Scales                  Refractive index (RI), % Brix and other standard scales included. User defined scales available.
Measuring Range 1.3200 – 1.5800RI/0 to 100% Brix
Accuracy ± 0.0001 RI / ± 0.05% Brix
Reproducibility ± 0.0001 RI / ± 0.05% Brix
Measurement Method Single sample
Measurement mode  Continuous



Temperature Specifications


Ambient Operating Temperature  +10 to +40°C
Automatic Temperature Compensation    +5° to +50°C
Temperature Measurement Optimized accuracy – sensor integral to sample surface
Temperature Control Method Peltier control range 20°C or 25°C
Temperature Accuracy ± 0.03°C
Temperature Reproducibility ± 0.02°C

AR9 REFRACTOMETER
AR9 REFRACTOMETER Image

This top of the line refractometer is exceptionally precise with measurement accuracies of 0.00002 refractive index (RI) and 0.02% Brix. With a built-in Peltier thermostat, the AR9 controls the temperature at the sample interface to an accuracy of 0.03°C. This unit is resilient and durable, making it the right choice for all laboratory requirements. As a robust sealed system, the AR9 is able to perform in a variety of environments. This refractometer has the capability to provide measurements for the most critically regulated industries. The AR9 has a YAG (Yttrium Aluminum Garnet) prism, the hardest prism available, guaranteeing accuracy and resilience for years. The Universal Display is included with the AR9 at no charge.


Tehnical Data


Measuring Scales         Refractive index (RI), %Brix and other standard scales included.  User defined scales available.
Measuring range 1.32000 – 1.70000 RI / 0 to 100% Brix
Accuracy ± 0.00002 RI / ± 0.02% Brix
Reproducibility ± 0.00001 RI / ± 0.01% Brix
Measurement Method Single sample or flow through
Measurement mode Continuous

Temperature Specifications


Ambient Operating Temperature    +10 to +40°C
Automatic Temperature Compensation +5° to +100°C
Temperature Measurement Optimized accuracy – sensor integral to sample surface
Temperature Control Method Peltier control range 5°C to +100°C
Temperature Accuracy ± 0.03°C
Temperature Reproducibility ± 0.02°C
Polarimeters
POLAR2 POLARIMETER
POLAR2 POLARIMETER Image

The new modular circular polarimeter Polar2 is  designed for analyzing optically active substances. These robust instruments are the most accurate, with a linear response throughout the measurement range.


Advantages

  • Optimized for pharmaceutical applications
  • Best accuracy – remains constant throughout measurement range
  • Exceptional high-quality analysis
  • Modular concept to grow with requirements
  • Different T-Cell polarimeter tubes for normal or small volumes
  • Self-calibration automatic wavelength control (AWC)
  • Multiple wavelength option
  • Continuous reading
  • Low maintenance
  • Compliant to international standards, GLP/GMP conformity and 21 CFR Part 11 ready
  • Energy saving and no maintenance LED light source

Tehnical Data


Measurement Scales Optical Rotation, Specific Rotation, OZ International Sugar Scale, % Concentration
User Definable Scales 1,000
Measuring Range ± 90° / ± 259°Z
Resolution 0.001° / 0.01°Z
Accuracy ± 0.01° / ± 0.03°Z
Reproducibility ± 0.01° / ± 0.03°Z
Sensitivity Up to OD 2
Wavelengths 589nm standard, others on request
Response Time 6 to 8 sec. over entire measuring range
Tube Lengths Up to 100 mm length
Tube Materials Glass, acid-proof stainless steel, stainless steel with temperature sensor

Temperature Interface


Temperature measurement NTC Sensor
Accuracy ± 0.01°C
Temperature range 10°C to 40°C
Resolution 0.01°C
Extraction Systems
PILOEX SL5 SOLID-LIQUID EXTRACTOR
PILOEX SL5 SOLID-LIQUID EXTRACTOR Image

For application in universities, technical colleges for training students.

The solvent circulates between extraction vessel, evaporator and condenser. The solid matter in the extraction vessel is continuously rinsed with purified solvent until all solubles are leached out of the solid matter.


The solvent, which is charged with the extract, flows from the extraction vessel into the evaporator, where the extract will be collected and concentrated.

After terminating the leaching process, a further purification of the extract by evaporation is possible.

The system is designed for batch (discontinuous) operation but can also be operated semi-continuously.

The standard system can be operated either for vacuum operation or overpressure operation as well.

The system can be designed either in glass, stainless steel or other material, depending on the application.


The following modes of operation can alternatively be carried out :

  • Extraction with continuous flow of solvent
  • Extraction by periodic flooding of the extraction vessel and subsequent draining through siphon action (Soxhlet principle)
  • Extraction with cold solvent
  • Extraction with hot solvent
PILOEX 250-SR MIXER-SETTLER FOR LIQUID-LIQUID EXTRACTION
PILOEX 250-SR MIXER-SETTLER FOR LIQUID-LIQUID EXTRACTION Image

This mixer-settler apparatus has been designed to study liquid-liquid-extraction processes. One part of the component, which has to be separated from the liquid phase (raffinate phase) is extracted by means of a liquid solvent (extract phase). This component is concentrated in the solvent (extract phase from the extraction phase to extraction phase). The raffinate phase and the extract phase will be led through the system in opposite directions. The advantage of the mixer-settler apparatus is the high efficiency of the exchange stages.

The latest re-design of EMS 250 SR liquid-liquid extractor consists of a 10-stage Mixer-Settler arrangement to work simultaneously.

Each stage consists of a mixer with downstream settler. In the mixer the light and the heavy phase from the neighbouring stages are brought together, are intensively mixed and then simultaneously conveyed into the settler. The mixing is realized by motor driven spiral stirrers for each mixing stage. Due to the intensive mixing the phases are divided into drops, so that the greater exchange surface, the substance transfer from one phase to another is heavily intensified.

Together with the component to be extracted, e.g. heavy phase, the raffinate phase is pumped from the raffinate store into the mixer of the last stage of the extractor. The solvent, e.g. light phase is pumped from the corresponding store tank into the mixer of the first stage of the extractor. Both phases, raffinate and extract are led into opposite directions through the extractor, the raffinate phase from the last stage and the extract phase from the first to the last extraction stage.

On it’s way through the apparatus the component which is to be extracted, is increasingly separated from stage to stage. Simultaneously the solvent stream (extract phase) absorbes more and more of the extracted component. The raffinate phase from which the component has been extracted, leaves the extractor at the first stage and is collected in a collecting vessel. The extracted phase leaded with the extracted component leaves the extractor at the last stage and is collected in a collecting vessel.

Contrary to other separation methods, the extraction will not directly lead to pure components. The extract phase is e.g. to be separated in a downstream distillation/rectification into extracted component and solvent.

This extraction process has the advantage of a low energy consumption for the separation of various compounds of liquid mixtures and is ideally applicable for demonstration purposes as well as for studying liquid-liquid extraction fundamentals in research and education.


Applications

  • Metal salt extractions
  • Liquids with low surface tension
  • Difficult coalescence in dispersed phase
  • Variation of the resident time for phases in the extraction stages
  • Reactions occuring during the extraction procedure
  • Considerable variations of the density during extraction
Thin-Film Evaporation
FILMDIST TF 650 THIN-FILM EVAPORATION
FILMDIST TF 650 THIN-FILM EVAPORATION Image
Universal apparatus for thin-film evaporation for lab-scale and pilot-scale application, complete with all necessary accessories for continuous operation. Rotary thin-film evaporator with thermostat mantle and external condenser. The model TF 650 is excellently suited for universal lab-scale and pilot-scale application and is completely equipped with all necessary accessories for the continuous operation.
Technical Data
glass Material borosilicate glass
evaporator Evaporator surface 6.5 dm², thin-film
temperatur Operating temperature up to 250°C C
pressure Operating pressure 0.1 mbar
throughput Throughput approx. 0.5-10 l/h
stromversorgung Mains Supply 208-250 V, 50 Hz (60 Hz upon request)
dimensions Dimensions (w x h x d) approx. 1.20 x 1.80 x 0.60 m
SP 500 SHORTH PATH EVAPORATOR
SP 500 SHORTH PATH EVAPORATOR Image

Short-path evaporator apparatus for lab-scale or pilot operation.

Rotary thin-film evaporator with thermostat mantle and internal condenser for continuous short-path distillation or gentle concentration of thermally sensible products. Suited for laboratory or pilot operation. The pilot operation data and experimental values can be transferred to bigger systems.

The standard system uses PTFE rolling wiper elements. Other wiper elements are available.


Technical Data


glass Material borosilicate glass
evaporator Evaporator surface 5 dm², short path
temperatur Operating temperature up to 250°C C
pressure Operating pressure 1.0 up to 0.001 mbar
throughput Throughput approx. 0.5-10 l/h
stromversorgung Mains Supply 208-250 V, 50 Hz (60 Hz upon request)
dimensions Dimensions (w x h x d) approx. 1.20 x 1.80 x 0.60 m

FILMDIST SP200 SHORTH PATH EVAPORATOR
FILMDIST SP200 SHORTH PATH EVAPORATOR Image

Universal lab-scale apparatus for short-path evaporation.

Rotary thin-film evaporator with thermostat mantle and internal condenser for continuous shortpath distillation or gentle concentration of thermally sensible products.

Suited for laboratory or pilot operation.

The pilot operation data and experimental values can be transferred to bigger systems.

The standard system uses glass wiper elements. Other wiper elements are available.

Mobile table to accommodate system and accessories can be ordered optionally.


Technical Data


  flask-3 Feed range 50 – 1000 ml / h
evaporator Evaporator material borosilicate glass
evaporator Feed-vessel 250 ml
evaporator Product receivers 250 ml
evaporator Evaporator surface 200 cm2, short path
temperatur Operating temperature max. 450°C
pressure Operating pressure 0.001 – 1000 mbar
stromversorgung Mains Supply 208 – 250 V, 50 Hz (60 Hz upon request)
Ozone Analysis
OGF OZONE GENERATOR
OGF OZONE GENERATOR Image

Portable ozone generators especially suited for reliable laboratory and pilot plant application; for oxygen and dried air as feedgas.

High ozone concentration in oxygen.

The ozone generating module is made of inert material and is build together with the power supply and the instrumentation into a 19” aluminium housing (protection class IP 42) with air cooling.

The gas flow is adjustable at the needle valve of the flow meter. The electrical power consumption is shown at the LCD display. The ozone concentration can be regulated between 5 and 100 % by means of an electrical controller or an external signal.


Generators available for different nom. ozone productions available:

  • 0,05 – 1 g/h type OGF 500
  • 1 g/h type OGF 501
  • 5 g/h type OGF 505
  • 10 g/h type OGF 510
  • 25 g/h type OGF 525
  • 50 g/h type OGF 550
OPF 200 OZONE ANALYZER
OPF 200 OZONE ANALYZER Image

The OZON analyzer OPF 200 is an accurate UV-photometer for the continuous measurement of the ozone concentration in the range 0 – 200 g/m3 in the gas phase.

The UV-system allows a measurement at 254 mm wavelength according DIN and IOA-Standard without any cross selection to other gas species. The instrument needs no moving parts and consists of single beam photometer. The UV-lamp has a very stable intensity and has to be replaced every 24 months.

The analyser consists of an internal catalyser for the destruction of ozone in the sample flow.

The unit is especially suited for ozone measurements at the output of ozone generators resp. ozone producing systems.

Water Content
Aquamax KF Water Content Analyzer
Aquamax KF Water Content Analyzer Image

A truly versatile Coulometric Karl Fischer Titrator for water content determination of gases, liquids and solids. The Aquamax KF PLUS is a small foot print titrator with a full numeric keypad for data entry and results manager software for data storage and retrieval. As well as being a stand-alone instrument, this titrator can be combined with accessories such as an Oil Evaporator or a Solids Evaporator system.

Aquamax KF Reagent A is a general coulometric KF anolyte for use with generator electrodes which incorporate a frit or diaphragm to separate the anode and cathode chambers. Used in conjunction with Aquamax KF Reagent C this formulation is supplied in a pack of 8 x 100ml bottles and 8 x 5ml cathode ampoules, all conveniently located in a single carton. This UN certified carton can be used to transport these reagent packs by road, rail, sea and air and the total pack volume is less than one litre so they can be shipped as limited quantity.

To conform to ASTM, API, EI, ISO (plus other) methodologies for water content determination of oil and petroleum products, the anode regent must be modified with xylene to improve sample solubility and miscibility. Aquamax KF Reagent A is pre-cut with xylene, and other solubilizers to eliminate side reactions, so that the operator does not have to store or mix chemicals.

We conducted extensive comparison trials of Aquamax KF Reagents against other leading brands with very positive results. Using water standards ranging from 10 µg water up to 10,000 µg water under controlled conditions we found Aquamax KF Reagent to be equivalent in perfomance accuracy to the other brands but much faster in titration speed and with low background drift value.

Modernised with chemical resistant anodised aluminium side panels and improved features.


  • Larger Keypad for ease of use in harsh environments
  • Built in printer for instant traceable results
  • Results Manager Data download Software
  • Conforms to ASTM, DIN, IP, ISO, JIS & AFNOR Standards
  • Robust Titration Cell and Electrodes, does not require PTFE sleeves or grease
  • Patented ACE Control system guarantees the correct result
  • User selectable languages – multi-choice
  • Easy to use water check button for reagent validation
  • Supplied with gas tight syringe for accurate sample injection
  • Available with Aquamax KF Reagent Kits and Standards
H2S Analyzers
ENVENT LAB SULFUR SENTRY
ENVENT LAB SULFUR SENTRY Image
The Lab Sulfur Sentry utilizes field proven tape based technology that provides a linear and interference-free output of H2S for laboratory applications. Available for hydrogen sulfide and total sulfur (optional) in gas measurements, and for total sulfur in hydrocarbon liquids with the addition of the syringe injector/total sulfur conversion option.
Specifications
  • No interference from other components in the sample
  • Low power consumption < 3 Watts
  • Measures up to 5 times the calibrated range.
  • Full field service & training available
  • I.C.E. (Integrated Configuration Environment) is a Windows® based program that accompanies all 3308 Analyzers for full configurability.
  • Field friendly interface via front display panel.
  • Easily configurable alarm processor and calculation processor.
  • 3 Mb event triggered archive storage
  • Alarm log
  • Customizable serial RS-232 & RS-485 mapping
  • Remote Display (optional)
  • Numerous modes of communication including 4-20mA outputs, alarm outputs, solenoid drivers, serial Modbus and Modbus TCP.
ENVENT FLANGED DILUTION PROBE
ENVENT FLANGED DILUTION PROBE Image
The Envent Flanged Dilution Probe eliminates problems associated with sampling high H2S concentrations in wet, dirty gas at low pressure.
Specifications
  • No sample pump required
  • No venting of high H2S sample
  • Highly resistant to contamination
  • Sample is measured insitu at process temperature and pressure
  • No H2S loss in the sample filter
  • Enhanced safety, no exposure to process gas during maintenance
  • No power required (safe in hazardous locations)
  • Isolates the analyzer from the process gas
ENVENT MODEL 331S TRANPORTABLE
ENVENT MODEL 331S TRANPORTABLE Image

This Model 331S Transportable is designed as a temporary H2S analyzer solution. The 331S utilizes field proven tape based technology that provides a linear and interference-free output of H2S. Certified for Class I, Div 2, Groups A, B, C and D.


Specifications

  • Fast Response times using Rapid Response Algorithm (RRA)~20 seconds to alarm
  • No interference from other components in the sample
  • Low power consumption < 3 Watts
  • Extended tape life of 60-90 days
  • Measures up to 5 times the calibrated range
  • Quick delivery
  • Full field service & training available

Applications Areas

The Model 331S Transportable comes in a rugged weatherproof transport case along with a standard sample system and can measure H2S in natural gas. Common applications include:

  • Sales Gas
  • Plant Inlet
  • Pipeline Monitoring & Blending
  • H2S Scavenger Systems
  • Wellhead Monitoring
  • Fuel Gas Monitoring
  • Bio Gas
ENVENT MODEL 331S
ENVENT MODEL 331S Image

The Model 331S H2S Analyzer utilizes field proven tape based technology that provides a linear and interference-free output of H2S. An optional Total Sulfur measurement can be added to the analyzer. Certified for Class I, Div 2, Groups A, B, C and D.


Specifications

  • Fast Response times using Rapid Response Algorithm (RRA) ~20 seconds to alarm
  • No interference from other components in the sample
  • Low power consumption < 3 Watts
  • Extended tape life of 60-90 days
  • Measures up to 5 times the calibrated range
  • Quick delivery - as quick as 1 to 2 days for standard systems
  • Full field service & training available

Applications Areas

The Model 331S measures H2S and/or Total Sulfur in natural gas, petrochemical streams, condensate, liquids, or LPG. Common applications include:

  • Sales Gas
  • Plant Inlet
  • Pipeline Monitoring & Blending
  • H2S Scavenger Systems
  • Wellhead Monitoring
  • Acid Gas
  • Fuel Gas Monitoring
  • Bio Gas
ENVENT MODEL 331SDS
ENVENT MODEL 331SDS Image

The Model 331SDS H2S Analyzer utilizes field proven tape based technology that provides a linear and interference-free output of H2S on two streams simultaneously. An optional Total Sulfur measurement can be added to the analyzer as one of the streams. Certified for Class I, Div 2, Groups A, B, C and D.


Specifications

  • Fast Response times using Rapid Response Algorithm (RRA)
  • 20 seconds to alarm
  • No interference from other components in the sample
  • Low power consumption < 3 Watts
  • Extended tape life of 60-90 days
  • Measures up to 5 times the calibrated range
  • Quick delivery
  • Full field service & training available

Application Areas

The Model 330SDS measures H2S and/or Total Sulfur in natural gas, petrochemical streams, condensate, liquids, or LPG. Common applications include:

  • Sales Gas
  • Plant Inlet
  • Pipeline Monitoring & Blending
  • H2S Scavenger Systems
  • Wellhead Monitoring
  • Acid Gas
  • Fuel Gas Monitoring
  • Bio Gas
ENVENT MODEL 331 DIV2
ENVENT MODEL 331 DIV2 Image
This uniquely rugged and simple design by Envent utilizes a lead acetate based detection system that provides a linear and interference-free output of H2S or optional Total Sulfur concentration.
Specifications
  • Ranges from 0–50 ppb to 0-100%
  • 1% from 0-20 ppm accuracy, 1% repeatability
  • Modbus serial communications
  • Displays up to 5 times full scale
  • Dual Isolated 4–20 mA outputs
  • Less than 20-second response time to alarm
  • Optional Total Sulfur and CO2
  • Interference-free Envent sensing tape
  • 60–90 day tape (longest tape life in the market)
  • Auto Zero each cycle
ENVENT MODEL 331
ENVENT MODEL 331 Image
A transportable system that can measure H2S in natural gas anywhere you need it. This uniquely rugged and simple design by Envent utilizes a lead acetate-based sensoring system that provides a linear and interference-free output of the H2S concentration.
Specifications
  • Rugged, weatherproof Pelican® case with extension handle and wheels
  • Self-contained sample conditioning system
  • On-board data logging (no chart recorders required)
  • Ranges from 0–50 ppb to 0–100%
  • 1.5% accuracy, 1% repeatability
  • Modbus Serial communications
  • Displays up to 5 times full scale
  • Dual Isolated 4–20 mA outputs
  • Less than 20-second response time to alarm
  • Optional Total Sulfur and CO2
  • Interference-free Lead acetate sensor
  • 60–90 day tape (longest tape life in the market)
  • Zero sensor drift
ENVENT MODEL 330S
ENVENT MODEL 330S Image

The Model 330S H2S Analyzer utilizes field proven tape based technology that provides a linear and interference-free output of H2S. An optional Total Sulfur measurement can be added to the analyzer. Certified for Class I, Div 1, Groups C and D (Group B available).


Specifications

  • Fast Response times using Rapid Response Algorithm (RRA) ~20 seconds to alarm
  • No interference from other components in the sample
  • Low power consumption < 3 Watts
  • Extended tape life of 60-90 days
  • Measures up to 5 times the calibrated range
  • Quick delivery - as quick as 1 to 2 days for standard systems
  • Full field service & training available

Application Areas

The Model 330S measures H2S and/or Total Sulfur in natural gas, petrochemical streams, condensate, liquids, or LPG. Common applications include:

  • Sales Gas
  • Plant Inlet
  • Pipeline Monitoring & Blending
  • H2S Scavenger Systems
  • Wellhead Monitoring
  • Acid Gas
  • Fuel Gas Monitoring
  • Bio Gas
ENVENT SULFUR SENTRY
ENVENT SULFUR SENTRY Image

The Sulfur Sentry utilizes field proven tape based technology that provides a linear and interference-free output of H2S for portable monitoring.


Specifications

  • Comes complete with a sample conditioning system.
  • Rechargeable 12 volt battery operates independantly for up to 24 hours with no external power source. Battery charger is included.
  • Fast Response times using Rapid Response Algorithm (RRA)
  • No interference from other components in the sample
  • Low power consumption < 3 Watts
  • Seven (7) day tape life
  • Measures up to 5 times the calibrated range.
  • Quick delivery - as quick as 1 to 2 days for standard systems
  • Full field service & training available
  • I.C.E. (Integrated Configuration Environment) is a Windows® based program that accompanies all 330S Analyzers for full configurability.
  • Field friendly interface via front display panel or Mini USB.
  • Easily configurable alarm processor and calculation processor.
  • 3 Mb event triggered archive storage
  • Alarm/Event log
  • Customizable serial RS-232 & RS-485 mapping
  • Remote Display (optional)
  • Numerous modes of communication including 4-20 mA outputs, alarm outputs, solenoid drivers, serial Modbus and Modbus TCP.

Application Areas

The Sulfur Sentry can measure H2S and in natural gas, petrochemical streams, condensate, liquids, or LPG. Common applications include:

  • Sales Gas
  • Plant Inlet
  • Pipeline Monitoring & Blending
  • H2S Scavenger Systems
  • Wellhead Monitoring
  • Fuel Gas Monitoring
  • Bio Gas
Oxygen Content
ENVENT MODEL M60
ENVENT MODEL M60 Image
The Model M60 is designed to monitor PPM and percent level O2 concentrations in natural gas applications. An electrochemical O2 sensor is incorporated into the design of the instrument. The M60 can be included as an additional measurement with other Envent analyzers, or can be offered as a stand-alone analyzer with an intergrated sample conditioning system.
Specifications
  • Electro-chemical sensor.
  • Dual alarm outputs.
  • Two line LCD display.
  • 4-20 mA output.
  • RS-232 and RS-485 configurable Modbus communications.
  • Quick delivery.
  • Full service and Training.
  • Available with differing sample systems and accessories as required in various applications.

Applications Areas
  • Vapour recovery systems.
  • Oxygen in gathering pipelines.
  • Storage tank blanket gas and other headspace applications.
CO2 Content
ENVENT MODEL M90
ENVENT MODEL M90 Image
The Model M90 is designed to monitor percent level CO2 concentrations in natural gas applications. An infrared, dual-beam technology is incorporated into the design of the instrument. The M90 can be included as an additional measurement with other Envent analyzers, or can be offered as a stand-alone analyzer with an integrated sample conditioning system.
Specifications
  • Dual-Beam NDIR Technology.
  • Long-term stability.
  • Low power consumption (2 watts).
  • Dual alarm outputs.
  • 4-20 mA output.
  • RS-232 and RS-485 Modbus communications.
  • Two Adjustable set point control relays.
  • Quick delivery.
  • Full service & training.
  • Available with differing sample systems and accessories as required in various applications.
  • The M90 dual-beam infra-red carbon dioxide detection systemcontinuously measures and corrects for the short and long-termconcentration changes that caused measurement errors in first generation (single beam) carbon dioxide sensors.

Application Areas
  • CO2 is measured routinely in natural gas for product quality and process control purposes. Common ranges are from 0-5% for sales gas and up to 0-30% for inlet CO2 concentration.
  • Gas plant Inlet.
  • Certain H2S-removal chemical processes can be fine-tuned by CO2 slipstreaming.
  • Quantify CO2 as a combustion by-product.
HC Composition
ENVENT MODEL TFS1
ENVENT MODEL TFS1 Image
The TFS1 is an all optical analytical platform using a Precisive TFS (tunable filter spectroscopy) infrared sensor from MKS Instruments. The TFS1 offers a multi-component gas analysis at unparalleled speed. The standard Envent TFS1 measures methane, ethane, propane, iso-butane, iso-pentane and a combined measurement for (n-butane, n-pentane and n-hexane), as well as % level CO2 and H2S. The spectrometer utilizes a tunable Fabry-Perot assembly that provides wavelength scanning along with advanced spectral processing that can produce response times as fast as 1 to 10 seconds. Additional measurement options are available depending on the application. This includes component analysis for the HPI market such as ethylene, propylenes, and butenes (Canada, Mexico and Middle East). Sampling is with a flowthrough cell, suitable for continuous, online, unattended operation. The analyzer does not require carrier gas, fuel gas or on-site calibration gas. The standard Envent system configuration provides measurements of up to 100% methane, 25% ethane, 25% propane, 10% butanes and 5% pentanes, 100% H2S and 100% CO2. Diatomic compounds such as nitrogen, oxygen and hydrogen are not measured directly and are combined and reported as one group of unmeasured inert gases.
  • Fast response times from 1 to 10 seconds.
  • No carrier gas or instrument air required.
  • Multi-component hydrocarbon gas analysis plus percent level H2S and CO2.
  • Wide range of additional components/ recipes to choose from.
  • BTU and Wobbe Index.
  • Limited maintenance required.
  • Low total cost of ownership.
  • Advanced software provides full configurability.

Specifications
  • Response times as fast as 1 to 10 seconds typical depending on application and accuracy desired.
  • No carrier gas or instrument air required.
  • First principle measurement.
  • BTU, Wobbe Index and density outputs.
  • Linear response throughout the measurement ranges.
  • Sample cell pressure and temperature compensated.
  • Remote & completely unattended operation.
  • Additional measurement recipes available.
  • Data logging.
  • Stream Switching.

Application Areas
  • Natural Gas measurements including processing, transmission, storage and distribution.
  • BTU & Wobbe Index analysis.
  • Power Generation (turbine, internal combustion engine, fuel cell).
  • LNG/LPG/BOG.
  • Acid Gas.
  • Gas Plant Inlet.
  • Truck/Ship/Railcar Unloading Terminals.
  • Portable/Temporary analysis.
  • Fuel Gas Monitoring.
  • Pipeline Blending.
  • Flare Gas Monitoring.
ENVENT MODEL TFS2
ENVENT MODEL TFS2 Image

The TFS2 is an all optical analytical platform using a Precisive TFS (tunable filter spectroscopy) infrared sensor from MKS Instruments. The TFS2 offers a multi-component gas analysis at unparalleled speed. The standard Envent TFS2 measures methane, ethane, propane, iso-butane, iso-pentane and a combined measurement for (n-butane, n-pentane and n-hexane), as well as % level CO2 and H2S.

The spectrometer utilizes a tunable Fabry-Perot assembly that provides wavelength scanning along with advanced spectral processing that can produce response times as fast as 1 to 10 seconds. Additional measurement options are available depending on the application. This includes component analysis for the HPI market such as ethylene, propylenes, and butenes (Canada, Mexico and Middle East). Sampling is with a flowthrough cell, suitable for continuous, online, unattended operation. The analyzer does not require carrier gas, fuel gas or on-site calibration gas. The standard Envent system configuration provides measurements of up to 100% methane, 25% ethane, 25% propane, 10% butanes and 5% pentanes, 100% H2S and 100% CO2. Diatomic compounds such as nitrogen, oxygen and hydrogen are not measured directly and are combined and reported as one group of unmeasured inert gases.

  • Fast response times from 1 to 10 seconds.
  • No carrier gas or instrument air required.
  • Multi-component hydrocarbon gas analysis plus percent level H2S and CO2.
  • Wide range of additional components/ recipes to choose from.
  • BTU and Wobbe Index.
  • Limited maintenance required.
  • Low total cost of ownership.
  • Advanced software provides full configurability.

Specifications

  • Response times as fast as 1 to 10 seconds typical depending on application and accuracy desired.
  • No carrier gas or instrument air required.
  • First principle measurement.
  • BTU, Wobbe Index and density outputs.
  • Linear response throughout the measurement ranges.
  • Sample cell pressure and temperature compensated.
  • Remote & completely unattended operation.
  • Additional measurement recipes available.
  • Data logging.
  • Stream Switching.

Application Areas

  • Natural Gas measurements including processing, transmission, storage and distribution.
  • BTU & Wobbe Index analysis.
  • Power Generation (turbine, internal combustion engine, fuel cell).
  • LNG/LPG/BOG.
  • Acid Gas.
  • Gas Plant Inlet.
  • Truck/Ship/Railcar Unloading Terminals.
  • Portable/Temporary analysis.
  • Fuel Gas Monitoring.
  • Pipeline Blending.
  • Flare Gas Monitoring.
ENVENT MODEL TFSP
ENVENT MODEL TFSP Image

The TFSP is an all optical analytical platform using a Precisive TFS (tunable filter spectroscopy) infrared sensor from MKS Instruments. The TFSP offers a multi-component gas analysis at unparalleled speed. The standard Envent TFSP measures methane, ethane, propane, iso-butane, iso-pentane and a combined measurement for (n-butane, n-pentane and n-hexane), as well as % level CO2 and H2S.

The spectrometer utilizes a tunable Fabry-Perot assembly that provides wavelength scanning along with advanced spectral processing that can produce response times as fast as 1 to 10 seconds. Additional measurement options are available depending on the application. This includes component analysis for the HPI market such as ethylene, propylenes, and butenes (Canada, Mexico and Middle East). Sampling is with a flowthrough cell, suitable for continuous, online, unattended operation. The analyzer does not require carrier gas, fuel gas or on-site calibration gas. The standard Envent system configuration provides measurements of up to 100% methane, 25% ethane, 25% propane, 10% butanes and 5% pentanes, 100% H2S and 100% CO2. Diatomic compounds such as nitrogen, oxygen and hydrogen are not measured directly and are combined and reported as one group of unmeasured inert gases.

  • Fast response times from 1 to 10 seconds.
  • No carrier gas or instrument air required.
  • Multi-component hydrocarbon gas analysis plus percent level H2S and CO2.
  • Wide range of additional components/ recipes to choose from.
  • BTU and Wobbe Index.
  • Limited maintenance required.
  • Low total cost of ownership.
  • Advanced software provides full configurability.

Specifications

  • Response times as fast as 1 to 10 seconds typical depending on application and accuracy desired.
  • No carrier gas or instrument air required.
  • First principle measurement.
  • BTU, Wobbe Index and density outputs.
  • Linear response throughout the measurement ranges.
  • Sample cell pressure and temperature compensated.
  • Remote & completely unattended operation.
  • Additional measurement recipes available.
  • Data logging.
  • Stream Switching

Application Areas

  • Natural Gas measurements including processing, transmission, storage and distribution.
  • BTU & Wobbe Index analysis.
  • Power Generation (turbine, internal combustion engine, fuel cell).
  • LNG/LPG/BOG.
  • Acid Gas.
  • Gas Plant Inlet.
  • Truck/Ship/Railcar Unloading Terminals.
  • Portable/Temporary analysis.
  • Fuel Gas Monitoring.
  • Pipeline Blending.
  • Flare Gas Monitoring.
Oil Spill Sensors
ROW Exd Oil Detector for Hazardous Areas
ROW Exd Oil Detector for Hazardous Areas Image

ROW Exd oil spill detector is designed to detect oil contamination in the hazardous areas where ignitable concentrations of flammable gases, vapors or mists often exist.


Flameproof (Ex d) Enclosure

ROW Exd Oil Detector is encased in flameproof (Exd) 3rd party certified enclosure, made of 316L stainless steel, which is acid and corrosion resistant making it ideal for the toughest enviornments.

Top Ip Rated Exd Device

IP68 certified non-contact Exd oil detector, using UV fluorescence method — highest rated on the market.

Range Best in Class

Outstanding detection range of 8m — twice the distance in comparison to similar products on the market.

Industry Leading Sensitivity — 1 μm

Advanced software algorithms are calibrated to detect oil down to single-micron layers and minimize false alarms.

Compatible With Existing Devices

ROW Exd Oil Detector can be installed within a network of LDI’s ROW Stainless Steel and ROW Aluminium devices, making expansion of existing ROW networks exceptionally convenient.


APPLICATIONS

Oil & Petrochemical: Oil Extraction, Oil Refining and Production, Storage & Transportation, Pipelines

Offshore: Platforms & Rigs, Marine Terminals, Loading & Transfer Buoys

Water Quality: Drinking Water Treatment, Waste Water Treatment, Desalination, Intake Protection

Transportation: Ports & Harbours, Marinas & Fuel Docks, Railway, Shipyards, Airports, Military

Environmental: Storm Water Management, Public Beaches, Sensitive Wildlife Habitat

Agriculture: Farm Equipment & Fuel Storage, Aquaculture & Fish Farms

Manufacturing: Steel & Aluminium, Pulps & Paper, Food Oils

Power Generation & Distribution: Carbon Based Production, Renewables – Hydro Electric, Nuclear



ROW Algae Autonomous Non-Contact Sensor for Water Qqality Monitoring
ROW Algae Autonomous Non-Contact Sensor for Water Qqality Monitoring Image

Early warning system for harmful algal blooms by determination of cholophyll-a concentration changes.

WHAT ARE ALGAL BLOOMS AND WHY MONITOR THEM?

Algal blooms tend to form in presence of ideal condition of temperature, nutrients and light. Algal blooms become harmful when colonies of algae—simple plants that live in the sea and freshwater—grow out of control while producing toxic or negative effects on people, fish, shellfish, marine mammals, and birds.

The human illnesses caused by harmful algal blooms, though rare, can be debilitating or even fatal.

Harmful algal blooms’ occurence are on the rise and are becoming a major environmental concern in many states, not only because they affect the health of people and marine ecosystems, but also the prosperity of local economies.

In consequence, governments and environmental authorities request effective algal bloom monitoring tools.


WHY CHLOROPHYLL-A DETECTION?

Chlorophyll-a concentration is the most commonly used parameter for measuring algal concentration or biomass, and assessing the occurence of algal blooms.

All photosynthetic organisms contain chlorophyll. Among all forms of chlorophyll, only chlorophyll-a is common to all algae.

A few micrograms of chlorophyll-a per litre are considered to be normal. Concentrations beyond 10 or 20 μg/L are evaluated as algal bloom.

Only a small amount of the algal biomass is eaten by zooplankton, the remains sink to the bottom where they are decomposed by bacteria.

Oxygen at the bottom can fall to stress levels for most organisms or even to near zero - causing death of the ecosystem in the area.



Features

  • Fast and convenient in-situ monitoring
  • No sampling or preparation required
  • Non-contact technique for maintenance-free operations
  • Fewer false alarms through advanced algorithmics

Applications

  • Water intakes and marine waterways
  • Water reservoirs and drinking water sources
  • Management of dams
  • Beaches, bathing and water leisure areas
  • Fishing areas
  • Water quality research
  • Fauna and wildlife
  • Human health

ROW Dom Autonomous Non-Contact Sensor for Water Quality Monitoring
ROW Dom Autonomous Non-Contact Sensor for Water Quality Monitoring Image

Early warning system for determination of water treatment by monitoring of dissolved organic matters (DOM) concentration changes.

MONITORING THRESHOLD LEVELS

ROW DOM monitors the levels of fluorescent dissolved organic matters (fDOM).

DOC concentrations greater than 5 mg/L will complicate water treatment and may result in disinfection by-products and water with less than 2 mg/L of DOC tend to be easily treated for disinfection by-products and do not increase finished water colour.

WHY DISSOLVED ORGANIC MATTERS MUST BE MONITORED?

Dissolved organic matter (DOM) does not pose health risk itself but may become potentially harmful when in combination with other aspects of water.

DOM reacts with disinfectants such as chlorine to form potentially carcinogenic byproducts called trihalomethanes. Trihalomethanes may have long-term effects on health and they should be considered when chlorinating drinking water high in DOM.

DOM interacts with organic/inorganic contaminants and affects their transport, stability and bioavailability. Moreover, most pesticide models require DOM as one of the main parameter inputs. DOM can also promote the growth of microorganisms by providing a food source.

Organic material in water can cause aesthetic problems such as an unpleasant taste, odour and colour.

Onsite installation for DOM monitoring during May 2015 to May 2016 (Location: Estonia)

Fluo Imager Compact
Fluo Imager Compact Image

Fluo-Imager™ is a multipurpose spectral analyser aimed at the express detection and identification of organic compounds in liquid samples. Its operation is based on the techniques of spectral fluorescence signatures (SFS) and pattern recognition. With these techniques different compounds in a mixture can be identified and quantified without the physical separation of individual substances in a sample.

Fluo-Imager™ is capable of performing both absorption spectra measurements and capture SFS simultaneously.


Features

  • Combined Fluorescence & Absorption
  • Measurements
  • Purpose-Built SFS Library
  • Multi-Parameter Detection & Identification
  • Continuous Background Correction
  • No Chemicals Required

Spectral Fluorescence Signatures

The principle of SFS is based on the measuring of the fluorescence intensity of a sample at different excitation and emission wavelengths. The intensity of light induced fluorescence as a function of excitation and emission wavelengths constitutes a 3-dimensional fluorescence matrix of the sample. Such matrix is called the Spectral Fluorescence Signature.

Since various chemical substances have different characteristic excitation and emission spectra of fluorescence, they typically produce different spectral patterns in SFS, which are used for substance identification. The intensity of fluorescence serves as a measure of substance quantity.


Fluo-Imager™ detects:

  • Light oil
  • Medium Oil
  • PAH - Polyaromatic Hydrocarbons
  • DOM - Colored Dissolved Organic Matter
  • Chlorophyll
  • Carotenoids
  • Phycoerythrin
  • Phycocyanin
  • BTEX (Benzene, Toluene, Ethylbenzene, Xylene) and other fluorescent compounds

Fluo Imager Portable
Fluo Imager Portable Image

Fluo-Imager™ is a multipurpose spectral analyser aimed at the express detection and identification of organic compounds in liquid samples. Its operation is based on the techniques of spectral fluorescence signatures (SFS) and pattern recognition. With these techniques different compounds in a mixture can be identified and quantified without the physical separation of individual substances in a sample.

Fluo-Imager™ is capable of performing both absorption spectra measurements and capture SFS simultaneously.


Features

  • Combined Fluorescence & Absorption
  • Measurements
  • Purpose-Built SFS Library
  • Multi-Parameter Detection & Identification
  • Continuous Background Correction
  • No Chemicals Required

Spectral Fluorescence Signatures

The principle of SFS is based on the measuring of the fluorescence intensity of a sample at different excitation and emission wavelengths. The intensity of light induced fluorescence as a function of excitation and emission wavelengths constitutes a 3-dimensional fluorescence matrix of the sample. Such matrix is called the Spectral Fluorescence Signature.

Since various chemical substances have different characteristic excitation and emission spectra of fluorescence, they typically produce different spectral patterns in SFS, which are used for substance identification. The intensity of fluorescence serves as a measure of substance quantity.


Fluo-Imager™ detects:

  • Light oil
  • Medium Oil
  • PAH - Polyaromatic Hydrocarbons
  • DOM - Colored Dissolved Organic Matter
  • Chlorophyll
  • Carotenoids
  • Phycoerythrin
  • Phycocyanin
  • BTEX (Benzene, Toluene, Ethylbenzene, Xylene) and other fluorescent compounds

ROW Early Detection System for Oil On Water
ROW Early Detection System for Oil On Water Image

ROW Detects: Motor oils, turbine oils, vegetable oils, fuel oils, marine diesel oils, crude oils, heating oils, lube oils, hydraulic oils, gas oils, motor oils, mineral oils


Remote Optical Watcher Autonomous non-contact sensor for detection of oil on water and land Highly accurate, easy to maintain, fi nds oil spills early so you can respond before things get out of hand.


24/7 Operation Even in Harsh Environments Day or night, in arctic cold or scorching heat, ROW helps you pinpoint the polluter, take action, and avoid lasting damage. Available in anodised aluminium, 316 stainless steel and now Exd enclosures for even the toughest environments.

Long Life, Low Maintenance Robust IP68 certified hermetic design and 5 year LED-lifetime. Low power consumption of < 2W with optional remote operation using solar panels or battery.

Pressurized for Your Protection Pressurized with inert nitrogen, ROW has been built to be a neutral observer.

Sold Globally, Serviced Locally We can ship the product anywhere in the world, safe in the knowledge that it will work. On-site service is provided by our local partners, ensuring timely and competent care for your ROW system. Where needed, LDI specialists in Estonia can be reached for consulting and feedback.


How ROW Works The Science To detect oil slicks as thin as a single micron from up to 10m above the water, ROW pulses a UV beam at the surface and excites any oil molecules in the target area. Using oil’s native fluorescence, ROW identifies tell-tale substances and alerts the site operator. After 20 years of developing remote-sensing systems we’ve probably mastered the technology better than anyone else.

Full Autonomy In most cases, ROW will operate on wired power and data lines. However, for full autonomy in hard-to-reach locations, optional solar panels and wireless setups are available.

Industry Leading Sensitivity - 1m Advanced software algorithms are calibrated to detect oil down to single-micron layers and minimize false alarms.

Ignition Quality Analyzers (IQT)
Cetane Number Ignition Quality Tester (IQT™)
Cetane Number Ignition Quality Tester (IQT™) Image

Laboratory ignition quality measurement for refineries, specification test laboratories and research applications


Specifications

  • Direct measurement of cetane number as per ASTM D6890, and EN 15195 (IP 498) standard specification test methods; ASTM D975 (diesel), ASTM 6751 (biodiesel) and EN 590 (diesel) approved
  • Accurately and precisely determines the ignition quality of diesel and alternative diesel fuels (uses high purity, high stability heptane for calibration)
  • Sensitive to cetane improver additives; sensitive to small fuel quality variations
  • Improved repeatability and reproducibility over the full DCN scale
  • Automated test procedure and quiet operation (easy to operate)
  •  Automated flushing/cleaning and calibration with optional Totally
  • Automated Laboratory Model (TALM) Kits
  • Short test time (less than 20 minutes, less than 17 minutes with TALM kits)
  • Small sample size (less than 100 mL, less than 17 mL for research purposes)
  • High level of reliability, rugged system, low operating and maintenance costs
  • Rapid response global service

Monthly fuel exchange test results over the past decade from ASTM and the Energy Institute have demonstrated that the IQT™ combustion pressure recovery ignition delay is highly correlated to the ASTM D613 cetane number (CN). The Test Method can accurately measure the ignition delay of a wide range of middle distillate fuels over the entire cetane number scale including conventional diesel fuels, oil sands-based, biodiesel, refinery streams, specialty fuels, as well as fuels with nitrate-based and oxygenate-based cetane improver additives.

Based on a model developed from well characterized ASTM NEG fuel remnants (see reference 1), the IQT™ results are displayed in real time in ignition delay and derived cetane number (DCN) formats. The test sequence is completely automated and is performed in under 20 minutes (including sample and system preparation). Test results and statistical analysis are printed at the end of each test, permitting the operator to quickly read the computerevaluation of test validity.

Pipeline Corrosion Tracking Coupons & Analyzers
CORROSION COUPONS
CORROSION COUPONS Image

Accurate monitoring of corrosion rates in any environment is critical when viewed in terms of the maintenance and repair costs associated with corrosion and material failure. Test coupons provide an inexpensive means of on-line monitoring that will allow you to effectively measure the corrosivity within your system. By observing the mils-per-year corrosion rate of an exposed coupon, valuable information can be provided regarding the material’s life expectancy. Biolab can make coupons in any size, shape, or material you need. Coupons can be stenciled with alloy and sequence numbers for proper identification. Mill test reports, identifying element compositions of materials used, are provided on all orders. The following coupons are four of the most commonly used in corrosion testing.





Finishes

  • Mill - finished as produced from mill.
  • Glass Bead - blasted with fine glass beads to remove mill scale.
  • 120 Grit - fine finish using a 120 grit belt. Commonly used in corrosion tests, such as pitting studies, where smooth surface finish is desired. Finishes up to 600 grit (extremely fine) can be provided.
  • Double Disc Ground - extra fine finish using an abrasive disc that leaves minimal residue. Excellent for studies where surface finish is critical. Can produce 16-32 RMS finishes on common steels and 8 RMS on carbide steels.

Coupon Ordering and Services Available

When placing your order for coupons, be ready to provide the sales person with information regarding the type of material you are testing, the size coupons required, surface finish desired, and if applicable, mounting hole size and location. The following options are available:

  • Manufacturing on time and material basis
  • Samples mounted on test racks and ready for installation
  • Preweighing - coupons are cleaned, preweighed on an electronic scale, and individually packaged
  • Weight log charts provided on computer disk
  • Non-standard coupons
  • Coupon measuring
  • Heat-treating, sensitizing, hot dip galvanizing
  • Manufacturing from your material if requested
  • Coupons made to specific requirements for mounting hole locations, coupon welding, stressing, and packaging
  • Plating - nickel, nickel cadmium, cadmium, chrome, silve, gold, and others upon request
  • Electro-polishing, hard facing
  • Non-metallic coatings
  • Anodizing and alonizing

Standard Coupons

Flat Coupons

P/N Size Hole Hole Location Area Sq. In.
CO100 1/2” x 3” x 1/16” 3/16” 1/4” fr. end 3.38
C0101 1”    x 2” x 1/16” 3/16” 1/4” fr. end 4.32
CO102 1/2” x 3” x 1/16” 9/64” 1/8” fr. end 3.41
CO103 1/2” x 3” x 1/16” 1/4” 1/4” fr. end 3.34
CO104 1/2” x 3” x 1/16” (2) 1/4” 1/2” fr. ea. end 3.24
CO105 1/2” x 3” x 1/16” 3/16” 1/2” fr. end 3.38
CO106 1/2” x 3” x 1/16” 1/4” 1/2” fr. end 3.34
CO115 1/2” x 3” x 1/16” 1/4” 1/4” fr. end
CO117 3/8” x 3  x 1/16” 9/64” 1/8” fr. end 2.64
CO118 1/2” x 3” x 1/16” (2) 1/4” 1/4 & 3/4” end 3.24
CO120 3/8” x 3” x 1/16” (2) 1/4” 1/4 & 3/4” end 2.48


Cylindrical Coupons

P/N Size Thread Slot Area Sq. In.
ES200 1/4” x Ø x 2  1/2” 1/4”-20 x 3/8” 1/16” 1.96
ES201 1/4” x Ø x 2” 1/4”-20 x 3/8” 1/16” 1.57
ES202 1/4” x Ø x 3” 1/4”-20 x 3/8” 1/16” 2.45
ES204 1/4” x Ø x 1  1/2” 1/4”-20 x 3/8” 1/16” 1.18
ES209 1/4” x Ø x 3” 1/4”-20 x 3/8” 1/16”
COUPON HOLDERS
COUPON HOLDERS Image

Fixed (Pipe Plug) Coupon Holders

Biolab carries a variety of standard pipe plug coupon holders for flat and cylindrical specimens. We can design and make these assemblies to meet your specifications for size and material requirements.

Pipe Plug Assemblies for Flat Coupons

P/N Plug Size 3” (Std.) Stem Used with Coupon P/N
RC12E*100036 3/4” NPT Nylon CO102, CO117
RC13E*100036 1” NPT Nylon CO102, CO117
RC12Q*100036 3/4” NPT Teflon CO102, CO117
RC13Q*100066 1” NPT Teflon CO102, CO117
RC12E*010036 3/4” NPT Nylon CO100, CO103, CO115
RC13E*010036 1” NPT Nylon CO100, CO103, CO115
RC12Q*010030 3/4” NPT Teflon CO100, CO103, CO115
RC13Q*010026 1” NPT Teflon CO100, CO103, CO115
RC12E*030036 3/4” NPT Nylon CO118, CO120
RC13E*030036 1” NPT Nylon CO118, CO120
RC12Q*030036 3/4” NPT Teflon CO118, CO120
RC13Q*030035 1” NPT Teflon CO118, CO120
RC12E*090036 3/4” NPT Nylon CO105, CO106
RC13E*090036 1” NPT Nylon CO105, CO106
RC12Q*090036 3/4” NPT Teflon CO105, CO106
RC13Q*090036 1” NPT Teflon CO105, CO106
RC11E*010036 3/4” NPT Nylon CO100, CO103, CO115




Pipe Plug Assemblies for Cylindrical Coupons

P/N Carbon Steel Plug Insert # of Stems
PA2080709413 2” NPT Nylon 8
PA2080783413 2” NPT Teflon 8
RC11E3040000 1/2” NPT Nylon 1
RC12E3040000 3/4” NPT Nylon 1
RC13E3040000 1” NPT Nylon 1

Bypass Piping Systems

We provide conventional or custom-designed bypass systems for on-line corrosion monitoring. Commonly used in the industrial water treatment industry to determine the corrosive properties of potable or cooling water, these systems are available in PVC, carbon and stainless steels, and other materials.

Bypass systems are easily installed to your existing piping. Normally, all you need is a 1” NPT male fitting on which to attach the bypass. Standard bypass systems come equipped with 4 pipe plug assemblies, 4 pre-weighed mild steel coupons, and a 5-gpm flow control valve.


Adjustable Coupon Holders

Low Pressure or Hand Insertable systems can be used for pressures up to 125 psi. This assembly is commonly used in the water treating industry for coupon insertion through a full port valve. An example of this is in a municipal water pumping station, where leakage during withdrawal of the test coupon would not be critical.



Retractable Coupon Holders

Packing Gland systems are used in more demanding environments, where ratings up to 1,500 psi are required and leakage is prohibited. These systems do not require line (process) shutdown to insert or withdraw coupons. The assembly is used for coupon insertion through at least a 1” full port valve. A safety chain is provided to prevent accidental ejection.


Retrievable Coupon Holders

These coupon holders are used with High Pressure Access Systems where pressure ratings up to 3,600 psi are required.


WELDED COUPONS
WELDED COUPONS Image

Corrosion rates can vary between welded and non-welded metals, therefore it is advisable to study the behavior of both conditions. Studies involve examination of the parent material, the heat affected zone, the weld metal, and the interfaces between all metals involved. The surface effects produced by welding, heat-tint formation or oxidation, fluxing action of slag, and the deliquescence of slag can be important factors in the corrosion behavior of metals.

Ideally, the coupon used should be the same thickness and welded with the same welding process as the material used in the production equipment. Usually this is not practical so a representative sample must be studied.

Typical welding techniques used are Shielded Metal Arc (SMAW), Gas Tungsten Arc (GTAW), and Gas Metal Arc (GMAW). Specimens are ground smooth after welding, unless otherwise specified, so as to provide a uniform surface for microscopic investigation.


Welded coupons can be prepared with or without the use of filler metal. The autogenous weld is prepared without the use of filler metal. This type of weld is the most economical method. Autogenous welds are commonly used to evaluate corrosion rates of welded materials and the usage of these materials in corrosive environments. An autogenous weld is produced by GTAW and can be used to test material weldability and gas shield usage, and to set welding parameters.
Autogenous Weld Coupon 1. 120 grit standard finish unless otherwise specified. 2. 1/8” nominal thickness. 3. Standard weld is autogenous weld across end (A.W.A.E.). Sanded after weld.
STRESSED COUPONS
STRESSED COUPONS Image
Stress corrosion cracking occurs when tensile stress combines with a corrosive environment to attack a material. Testing for this type of corrosion is critical in storage tanks, pressure piping, and vessels commonly used in chemical processing plants and petrochemical refineries. Biolab can make your stressed samples in accordance with all ASTM standards including G30, G38, G39, and G58 or to your custom specifications.
TEST RACKS
TEST RACKS Image

Biolab offers test racks used to mount coupons and secure them directly to operating equipment or within a process system. Test racks make it easy to evaluate how corrosion would effect differing alloys and material finishes under identical conditions. Rack usage helps eliminate coupon loss which might occur if samples were individually placed in a process flow.

Racks can be fabricated to meet your requirements for material and size. Typical racks are flat bar racks, spool racks, and pipeline insertion racks. Other racks include angle bar racks and outdoor exposure racks. A variety of insulators, washers, and spacers used to isolate coupons can also be ordered separately.


Guidelines for Supporting Specimens

Corrosive behavior of materials subjected to immersion, partial immersion, or vapor phase can have great variance. For this reason, specimens to be tested should be properly positioned. There are several important points to be considered when supporting specimens for exposure:

  • Each specimen location should be identified by sketch and recorded.
  • The corrosive media should have access to the coupons.
  • The test rack should have adequate corrosion resistance to endure the test.
  • Specimens should be electrically isolated from other metals unless galvanic effects are being studied.
  • Specimens should be located in easily accessible areas.

INSULATORS, WASHERS & SPACERS
INSULATORS, WASHERS & SPACERS Image
Biolab makes a variety of insulators, washers, and spacers used to isolate test specimens. We also make insulator kits (R5102) that contain an assortment of washers, screws, nuts, and stems. These kits are designed for field use when a variety of insulators are needed. The chart shown here is a general guide to material applications. Call for recommendations on use in hazardous or severe environments.
Material vs. Environment
ELECTRODES
ELECTRODES Image
Biolab provides electrodes compatible with our various probes and instruments, as well as those of most other major manufacturers. Other electrodes not shown here are also available. Electrodes are made from a variety of materials (see Alloys list).
DATA LOGGER
DATA LOGGER Image
  • Digital, hand-held, menu-driven corrosion meters that take probe measurements and store the data to be later downloaded to a computer for analysis.
  • Data loggers used to continuously monitor probes in remote locations, automatically read the probes at selected intervals, and store the readings in memory.
  • Field transmitters which transmit measurements to a receiver (such as a DCS or SCADA system). Wireless radio options are available to eliminate cable and conduit setup.
Elemental Analysis
SPECTROIL OIL & FUEL ELEMENTAL ANALYSIS SPECTROMETER Image
SPECTROIL OIL & FUEL ELEMENTAL ANALYSIS SPECTROMETER
Spectroil Series are easy to use, reliable and the workhorses of commercial and military oil analysis laboratories that require the rapid analysis of wear metals, contaminants and additives in lubricants. It mea... Read More
Particle Count & Shape Imaging
LNF PARTICLE COUNTER & SHAPE CLASSIFIER Image
LNF PARTICLE COUNTER & SHAPE CLASSIFIER
The Spectro LNF Q200 series applies the world’s best oil particle counter technology.  With an intuitive, configurable GUI and no calibration required, the Q200 series is fast, accurate and easy to use. ... Read More
T2FM Q500 - Laboratory Ferrography Image
T2FM Q500 - Laboratory Ferrography
T2FM Q500 Analytical Ferrography Laboratory is a complete analytical system for the separation and interpretation of wear and contaminant particles in used lubricant oils, hydraulic fluids, coolants and fuels. It consists of the T2FM Ferrog... Read More
Lube Chemical Properties
FLUIDSCAN PORTABLE OIL ANALYSIS SYSTEM Image
FLUIDSCAN PORTABLE OIL ANALYSIS SYSTEM
The FluidScan® Q1100 provides direct quantitative measurement of a lubricant’s condition and plays an important role in Machine Condition Monitoring (MCM) for proactive and predictive maintenance in Reliabili... Read More
All-in-One Analyzers
MINILAB 53 OIL ANALYSIS SYSTEM Image
MINILAB 53 OIL ANALYSIS SYSTEM
Oil analysis provides early indications of equipment wear and identifies the root causes of corrosion.  On-site oil analysis eliminates the wait associated with sending samples off-site and enables immediate de... Read More
MICROLAB ALL-IN-ONE AUTOMATED LUBRICANT ANALYSIS SYSTEM Image
MICROLAB ALL-IN-ONE AUTOMATED LUBRICANT ANALYSIS SYSTEM
The MicroLab 40 is a fully automated oil analyzer that provides diagnostic analysis of engine, generator, gear box, hydraulics, power steering, and transmission fluids. The Micr... Read More
Portable Oil Analysis Kits Image
Portable Oil Analysis Kits
Portable Oil Analysis Kit Monitoring lubricant condition in machine wear when and where it is needed significantly... Read More
Antifreeze Analysis
COOLCHECK COOLANT AND DIESEL EXHAUST FLUIDS (DEF) ANALYSIS SYSTEM Image
COOLCHECK COOLANT AND DIESEL EXHAUST FLUIDS (DEF) ANALYSIS SYSTEM
Cooling systems play a vital role in preserving the overall engine heat balance and in protecting engine components against corrosion and other problems. ... Read More
Fuel Dilution
FDM Q6000 FUEL DILUTION METER Image
FDM Q6000 FUEL DILUTION METER
Fuel dilution in lubrication oil can cause serious engine damage.  In diesel engine crankcases, for example, contamination can be caused by excessive idling, defective injectors and loose connections.  Fuel di... Read More
Flash Point
MINIFLASH TOUCH FLASH POINT ANALYZER Image
MINIFLASH TOUCH FLASH POINT ANALYZER
MINIFLASH TOUCH is a uniquely designed flash point tester for the determination of flashpoints of liquids and solids, using the Grabner flash point detection method of measuring the instantaneous pressure increa... Read More
Oil in Water Analysis
INFRACAL OIL IN WATER ANALYZER Image
INFRACAL OIL IN WATER ANALYZER
With over 3,500 oil and grease monitors in world-wide use today, InfraCal 2 Analyzers, originally developed by Wilks, have become a standard for the petrochemical industry.  These essential tools ensure that oi... Read More
Viscosity Analysis
Q300 AUTOMATIC VISCOMETER Image
Q300 AUTOMATIC VISCOMETER
SpectroVisc Q300 is a bench-top automatic kinematic temperature bath viscometer optimized for the analysis of used and new lubricants. It conforms to the requirements in ASTM D445, D446, D7279, IP 71 and ISO 310... Read More
Q3000 PORTABLE AUTOMATIC VISCOMETER Image
Q3000 PORTABLE AUTOMATIC VISCOMETER
The SpectroVisc Q3000 series viscometers are the first truly portable, solvent-free, temperature-controlled 40C kinematic viscometers, providing high-accuracy measurements for easy detection of viscosity variati... Read More
MINITEST FFK GREASE FLOW TESTER Image
MINITEST FFK GREASE FLOW TESTER
MINITEST FFK automatically determines the flow-pressure properties of lubricating grease at low temperatures down to -60°C by means of the Kesternich test. The original and time-consuming method is now fully au... Read More
TV2000 ASPHALT VISCOMETER Image
TV2000 ASPHALT VISCOMETER
TV2000 is to determine kinematic viscosity of liquid asphalts (bitumens), road oils and distillation residues of liquid asphalts (bitumens) all at 60°C (140°F) and of asphalt cements at 135°C (275°F) in th... Read More
TV4000 BITUMEN VISCOMETER Image
TV4000 BITUMEN VISCOMETER
This test method covers procedures for the determination of viscosity of asphalt (bitumen) by vacuum capillary viscometers at 60°C. It is applicable to materials having viscosities in the range from 0.0036 to o... Read More
Viscol 10A Fully Automatic Kinematic Viscometer for Oils & Fuels Applications Image
Viscol 10A Fully Automatic Kinematic Viscometer for Oils & Fuels Applications
ASTM D445, ISO 3104, ISO 3105, IP 7 Applications: Hydraulic oil, In-S... Read More
Viscol 10P Fully Automatic Kinematic Viscometer for Polymer Applications Image
Viscol 10P Fully Automatic Kinematic Viscometer for Polymer Applications
ASTM D445, ISO 3104, ISO 3105, IP 7, ASTM D789, ASTMD4603, ASTM D2857, ASTM D1795, ASTM D1243 ... Read More
Viscol 10J Fully Automatic Kinematic Viscometer for Low Temperature Applications Image
Viscol 10J Fully Automatic Kinematic Viscometer for Low Temperature Applications
ASTM D445, ISO 3104, ISO 3105, IP 7 Applications: Suitable for jet fu... Read More
Viscol 10B Fully Automatic Kinematic Viscometer for Bitumens & Asphalt Applications Image
Viscol 10B Fully Automatic Kinematic Viscometer for Bitumens & Asphalt Applications
ASTM D445, ISO 3104, ISO 3105, IP 7, ASTM D2170 Applications: Suitabl... Read More
Viscol 10S Semi Automatic Kinematic Viscometer Image
Viscol 10S Semi Automatic Kinematic Viscometer
ASTM D445, ISO 3104, ISO 3105, IP 7 Applications: Hydraulic oil, In-S... Read More
Vapor Pressure
MINIVAP VAPOR PRESSURE TESTER Image
MINIVAP VAPOR PRESSURE TESTER
MINIVAP VP Vision is a highly versatile portable vapor pressure tester that features best-in-class precision and a pressure range of 0-2000 kPa. It is the first analyzer that demonstrates excell... Read More
TAN/TBN Analysis
PAT 940 TAN/TBN ANALYZER Image
PAT 940 TAN/TBN ANALYZER
Introducing a more user friendly and robust titrator combined with the latest touch screen/swipe technology. User friendly is a common phrase bounced around in many different industries. It is easy to say but no... Read More
Fuel Analysis
MINISCAN IRXPERT GASOLINE DIESEL AND JET FUEL ANALYZER Image
MINISCAN IRXPERT GASOLINE DIESEL AND JET FUEL ANALYZER
The MINISCAN IRXpert is the first completely portable multi-fuel analyzer for Gasoline, Diesel, Jet Fuel and Biofuel Blends, which uses the ... Read More
PARAFUEL NIR IN-LINE ANALYZER Image
PARAFUEL NIR IN-LINE ANALYZER
The ParaFuel™ NIR Process analyzer from LT Industries provides comprehensive inline analysis of Diesel, Gasoline, Jet Fuel, Kerosene, Crude Oil, Blending components and Blended Fuels... Read More
Distillation Systems
MINIDIS ADXPERT AUTOMATIC MINI-DISTILLATION SYSTEM Image
MINIDIS ADXPERT AUTOMATIC MINI-DISTILLATION SYSTEM
This true atmospheric distillation analyzer is extremely compact, portable and light weight and operates as a fully stand-alone unit. Designed for the quick and accurate quality control in l... Read More
PILODIST 107 SOLVENT RECOVERY Image
PILODIST 107 SOLVENT RECOVERY
PILODIST 107 is an easy to handele solvent recovery system for extremely pure solvents. The solvent mixtures are side products of extraction’s, washing processes, chemical and biochemical reactions, chromatographic operations in clinic... Read More
PETRODIST 150S RECOVER BITUMEN FROM CRUDE OIL Image
PETRODIST 150S RECOVER BITUMEN FROM CRUDE OIL
The processor controlled crude oil distillation system includes control of heating and vacuum as well as the display and storage of all important process values: The design is based on the distillation of a char... Read More
Petrodıst 500Q SEMI-AUTOMATIC DISTILLATION Image
Petrodıst 500Q SEMI-AUTOMATIC DISTILLATION
Following an increasing demand for crude oil distillations to analyze small quantities in a short period of time PILODIST has modified the existing HRS 500 system to be applied for the purpose of crude oil disti... Read More
PETRODIST 600 COMPLETE CRUDE OIL DISTILLATION SYSTEM Image
PETRODIST 600 COMPLETE CRUDE OIL DISTILLATION SYSTEM
Combining 3 different internationally accepted ASTM procedures in 1 single system: ASTM D-2892 ASTM D-5236 ASTM D-1160 ... Read More
PETRODIST 400 COMPLETE CRUDE OIL DISTILLATION Image
PETRODIST 400 COMPLETE CRUDE OIL DISTILLATION
Processor controlled combined crude oil distillation system for fully automatic operation according to ASTM D-2892 (TBP) and ASTM D-5236 (Potstill). PETRODIST 400 CC is a combination of the following systems:... Read More
PETRODIST 200 CRUDE OIL DISTILLATION SYSTEM Image
PETRODIST 200 CRUDE OIL DISTILLATION SYSTEM
Processor controlled crude oil distillation system for fully automatic operation according to ASTM D-5236 (Standard Test Method for Distillation of Heavy Hydrocarbon Mixtures, Vacuum Potstill Method). ... Read More
PETRODIST 100 CRUDE OIL DISTILLATION SYSTEM Image
PETRODIST 100 CRUDE OIL DISTILLATION SYSTEM
Crude oil distillation system for semi-automatic operation exactly according to ASTM D-2892 (TBP). The system is designed for automatic... Read More
PETRODIST 300 CRUDE OIL DISTILLATION SYSTEM Image
PETRODIST 300 CRUDE OIL DISTILLATION SYSTEM
Fully automatic crude oil distillation system, processor controlled according to ASTM D-1160  for the determination of boiling ranges of crude oil products under vacuum. The system can be operated in strict acc... Read More
1120CC COOLANT DISTILLATION SYSTEM Image
1120CC COOLANT DISTILLATION SYSTEM
The system is designed for fully-automatic operation conforming to ASTM-D1120 to determine very precise and reproduceable the boiling point of engine coolants and brake fluids. ... Read More
PILODIST 250 CONTINOUS DISTILLATION SYSTEM Image
PILODIST 250 CONTINOUS DISTILLATION SYSTEM
The system has been designed to operate under atmospheric  as well as vacuum conditions down to 1 Torr in continuous and discontinuous (batch) mode by using either a circulation evaporator with level sensors or... Read More
Lubricity Analysis
BOCLE 5001 LUBRICTY ANALYZER Image
BOCLE 5001 LUBRICTY ANALYZER
Fully Automatic Test Equipment for Measurement of Lubricity of Aviation Turbine Fuels by the Ball-on-Cylinder Lubricity Evaluator according to ASTM D-5001. The BOCLE-equipment a... Read More
Sulfur Analysis
SINDIE 7039 SULFUR ANALYZER Image
SINDIE 7039 SULFUR ANALYZER
The Sindie® 7039 Benchtop model is specifically designed for fast batch testing from 0.15 – 3000 ppm (wt.) sulfur fuel samples at petroleum pipeline terminals, refineries, and test laboratories. The unit is c... Read More
Sindie +Cl Image
Sindie +Cl
TWO critical measurements, ONE push of a button, ZERO hassle Sindie +Cl is a two-in-one instrument enabling trace ... Read More
PETRA EDXRF SULFUR ANALYSIS SYSTEM Image
PETRA EDXRF SULFUR ANALYSIS SYSTEM
Petra 4294 delivers high-precision D4294 sulfur analysis across a broad measurement range. Petra 4294 offers advanced precision with HDXRF, advanced reliability, and advanced software and data management. Petroleum laboratories depend on re... Read More
X-RAY Fluorescence (XRF) Systems
CLORA CHLORINE ANALYZER Image
CLORA CHLORINE ANALYZER
Chlorine Analysis in Liquid Hydrocarbons, Aqueous Solutions and Catalyst The Clora Benchtop analyzer is designed f... Read More
PHOEBE PHOSPHORUS ANALYZER Image
PHOEBE PHOSPHORUS ANALYZER
From crude oil to bio-fuels in additives or water, the Phoebe®  Bench-Top Analyzer delivers unprecedented precision and accuracy for quantification of phosphorus analysis. Based on XOS’s MWD XRF analytic pla... Read More
SIGNAL SILICON ANALYZER Image
SIGNAL SILICON ANALYZER
From gasoline to ethanol and toluene, the Signal benchtop analyzer delivers unprecedented precision and accuracy in quantitative analysis of silicon in petroleum. The analyzer is based on XOS’s MWDXRF technolo... Read More
HD MAXINE XRF ELEMENTAL ANALYZER Image
HD MAXINE XRF ELEMENTAL ANALYZER
HD Maxine ® assures precise determination of trace metals in crudes, lubricants and used oils without extensive sample preparation or expensive consumables. The analyzer enables the direct analysis of metals f... Read More
Gas Chromotography
CALIDUS GAS CHROMATOGRAPH Image
CALIDUS GAS CHROMATOGRAPH
In the lab, in the process, in the field – the CALIDUS Gas Chromatograph is fast becoming the leading choice for GC applications in a wide variety of industry and environmental applications. ... Read More
ENVENT MODEL 131 Image
ENVENT MODEL 131
Designed to provide accurate and reliable measurements for a variety of the applications commonly found in the Oil and Gas industry. The Model 131 design offers many features while still offering a level of simplicity, affordability and ... Read More
ENVENT MODEL 132 Image
ENVENT MODEL 132
Designed to provide accurate and reliable measurements for a variety of the applications commonly found in the Oil and Gas industry. The Model 132 design offers many features while still offering a level of s... Read More
Stability & Flocculation Analysis
PORLA STABILITY ANALYZER Image
PORLA STABILITY ANALYZER
Porla Analyser can analyse heavy and crude oils that cover extremely wide viscosity and asphaltene content ranges from very high to very low. Very o... Read More
Cold Property Analysis
DR5 AUTOMATIC CLOUD, FREEZE, POUR POINT AND CFPP ANALYZER Image
DR5 AUTOMATIC CLOUD, FREEZE, POUR POINT AND CFPP ANALYZER
The DR5 is a cold properties analyzer. A unique interchangeable cartridge system allows cloud, pour, and CFPP on the same machine. The DR5 is single position. There are three types of cartridges: cloud, pour, an... Read More
TLC MANUAL CLOUD AND POUR POINT ANALYZER Image
TLC MANUAL CLOUD AND POUR POINT ANALYZER
Apparatus to determine the cloud and pour point manually conform ASTM D97 and ASTM D2500. The TLC adjustable circulator bath with position for six jackets. The pour point describes a procedure for testing the fl... Read More
Density Analysis
TLC 15 HYDROMETER METHOD DENSITY METER Image
TLC 15 HYDROMETER METHOD DENSITY METER
Complete ASTM D1298 set-up for three positions (including frame, cylinders, lids, tubing, connectors and TLC15-5 circulator). The set-up has a small footprint, detachable leakage tray and is easy to drain and cl... Read More
D70 ASPHALT/BITUMEN DENSITY PYCNOMETER Image
D70 ASPHALT/BITUMEN DENSITY PYCNOMETER
This test method covers the determination of the relative density and density of semi-solid bituminous materials, asphalt cements, and soft tar pitches by use of a pycnometer. The sample is placed in a calibrate... Read More
DENSITY 4/5 DENSITY METER Image
DENSITY 4/5 DENSITY METER
The Density4 and Density5 density meters continue  providing robust and reliable analytical analysis for the needs of many industries. With the push-of-a-button this instrument provides accurate density measu... Read More
Copper & Silver Corrosion
TC16 COPPER CORROSION ANALYZER Image
TC16 COPPER CORROSION ANALYZER
TC16 circulator with temperature range from ambient to 250°C, 115V-60Hz., temperature stability ± 0.02°C. Bath conforms to ASTM D130, ASTM D4048, ASTM D7095, EN/ISO 2160, DIN 51811, IP154 and IP112. It is eq... Read More
TB30 LPG COPPER CORROSION Image
TB30 LPG COPPER CORROSION
TB30 bath with temperature range from ambient to 80°C, 230V-50Hz~60Hz, temperature stability ± 0.02°C. Bath is conform ASTM D1838, EN/ISO 6251, IP411, BS2000 Part 411, BS6924, NF M41-007 and is specifically d... Read More
TC16 SILVER CORROSION SYSTEM Image
TC16 SILVER CORROSION SYSTEM
TC16 circulator with temperature range from ambient to 250°C, 230V-50Hz~60Hz, temperature stability ± 0.02°C. Bath conforms to ASTM D4814, ASTM D7667, ASTM D7671, IP 227, and IP 611. It is equipped with a co... Read More
TC40 COPPER CORROSION OF AROMATIC HYDROCARBONS Image
TC40 COPPER CORROSION OF AROMATIC HYDROCARBONS
TC40 set-up for D849 to determine the corrosiveness to copper from aromatic hydrocarbons. . The set-up consists of a TC40 circulator bath and it is standard delivered with six sets of glassware (250 mL flask an... Read More
Refractometers
AR5 REFRACTOMETER Image
AR5 REFRACTOMETER
The economical AR5 digital refractometer with Peltier temperature control included makes sophisticated measuring technology available to users on a tight budget. High-end accuracy and a good price point give cus... Read More
AR9 REFRACTOMETER Image
AR9 REFRACTOMETER
This top of the line refractometer is exceptionally precise with measurement accuracies of 0.00002 refractive index (RI) and 0.02% Brix. With a built-in Peltier thermostat, the AR9 controls the temperature at th... Read More
Polarimeters
POLAR2 POLARIMETER Image
POLAR2 POLARIMETER
The new modular circular polarimeter Polar2 is  designed for analyzing optically active substances. These robust instruments are the most accurate, with a linear response throughout the measurement range. ... Read More
Extraction Systems
PILOEX SL5 SOLID-LIQUID EXTRACTOR Image
PILOEX SL5 SOLID-LIQUID EXTRACTOR
For application in universities, technical colleges for training students. The solvent circulates between extraction vessel, evaporator and condenser. The solid matter in the ex... Read More
PILOEX 250-SR MIXER-SETTLER FOR LIQUID-LIQUID EXTRACTION Image
PILOEX 250-SR MIXER-SETTLER FOR LIQUID-LIQUID EXTRACTION
This mixer-settler apparatus has been designed to study liquid-liquid-extraction processes. One part of the component, which has to be separated from the liquid phase (raffinate phase) is extracted by means of a... Read More
Thin-Film Evaporation
FILMDIST TF 650 THIN-FILM EVAPORATION Image
FILMDIST TF 650 THIN-FILM EVAPORATION
Universal apparatus for thin-film evaporation for lab-scale and pilot-scale application, complete with all necessary accessories for continuous operation. Rotary thin-film evaporator with thermostat mantle and external condenser. The ... Read More
SP 500 SHORTH PATH EVAPORATOR Image
SP 500 SHORTH PATH EVAPORATOR
Short-path evaporator apparatus for lab-scale or pilot operation. Rotary thin-film evaporator with thermostat mantle and internal condenser for continuous short-path distillatio... Read More
FILMDIST SP200 SHORTH PATH EVAPORATOR Image
FILMDIST SP200 SHORTH PATH EVAPORATOR
Universal lab-scale apparatus for short-path evaporation. Rotary thin-film evaporator with thermostat mantle and internal condenser for continuous shortpath distillation or gent... Read More
Ozone Analysis
OGF OZONE GENERATOR Image
OGF OZONE GENERATOR
Portable ozone generators especially suited for reliable laboratory and pilot plant application; for oxygen and dried air as feedgas. High ozone concentration in oxygen. ... Read More
OPF 200 OZONE ANALYZER Image
OPF 200 OZONE ANALYZER
The OZON analyzer OPF 200 is an accurate UV-photometer for the continuous measurement of the ozone concentration in the range 0 – 200 g/m3 in the gas phase. The UV-system allo... Read More
Water Content
Aquamax KF Water Content Analyzer Image
Aquamax KF Water Content Analyzer
A truly versatile Coulometric Karl Fischer Titrator for water content determination of gases, liquids and solids. The Aquamax KF PLUS is a small foot print titrator with a full numeric keypad for data entry and ... Read More
H2S Analyzers
ENVENT LAB SULFUR SENTRY Image
ENVENT LAB SULFUR SENTRY
The Lab Sulfur Sentry utilizes field proven tape based technology that provides a linear and interference-free output of H2S for laboratory applications. Available for hydrogen sulfide and total sulfur (optional) in gas measurements, and... Read More
ENVENT FLANGED DILUTION PROBE Image
ENVENT FLANGED DILUTION PROBE
The Envent Flanged Dilution Probe eliminates problems associated with sampling high H2S concentrations in wet, dirty gas at low pressure. Specifications ... Read More
ENVENT MODEL 331S TRANPORTABLE Image
ENVENT MODEL 331S TRANPORTABLE
This Model 331S Transportable is designed as a temporary H2S analyzer solution. The 331S utilizes field proven tape based technology that provides a linear and interference-free output of H2S. Certified for C... Read More
ENVENT MODEL 331S Image
ENVENT MODEL 331S
The Model 331S H2S Analyzer utilizes field proven tape based technology that provides a linear and interference-free output of H2S. An optional Total Sulfur measurement can be added to the analyzer. Certified... Read More
ENVENT MODEL 331SDS Image
ENVENT MODEL 331SDS
The Model 331SDS H2S Analyzer utilizes field proven tape based technology that provides a linear and interference-free output of H2S on two streams simultaneously. An optional Total Sulfur measurement can be ... Read More
ENVENT MODEL 331 DIV2 Image
ENVENT MODEL 331 DIV2
This uniquely rugged and simple design by Envent utilizes a lead acetate based detection system that provides a linear and interference-free output of H2S or optional Total Sulfur concentration. ... Read More
ENVENT MODEL 331 Image
ENVENT MODEL 331
A transportable system that can measure H2S in natural gas anywhere you need it. This uniquely rugged and simple design by Envent utilizes a lead acetate-based sensoring system that provides a linear and interference-free output of the H2S ... Read More
ENVENT MODEL 330S Image
ENVENT MODEL 330S
The Model 330S H2S Analyzer utilizes field proven tape based technology that provides a linear and interference-free output of H2S. An optional Total Sulfur measurement can be added to the analyzer. Certified... Read More
ENVENT SULFUR SENTRY Image
ENVENT SULFUR SENTRY
The Sulfur Sentry utilizes field proven tape based technology that provides a linear and interference-free output of H2S for portable monitoring. ... Read More
Oxygen Content
ENVENT MODEL M60 Image
ENVENT MODEL M60
The Model M60 is designed to monitor PPM and percent level O2 concentrations in natural gas applications. An electrochemical O2 sensor is incorporated into the design of the instrument. The M60 can be included as an additional measuremen... Read More
CO2 Content
ENVENT MODEL M90 Image
ENVENT MODEL M90
The Model M90 is designed to monitor percent level CO2 concentrations in natural gas applications. An infrared, dual-beam technology is incorporated into the design of the instrument. The M90 can be included as an additional measurement wi... Read More
HC Composition
ENVENT MODEL TFS1 Image
ENVENT MODEL TFS1
The TFS1 is an all optical analytical platform using a Precisive TFS (tunable filter spectroscopy) infrared sensor from MKS Instruments. The TFS1 offers a multi-component gas analysis at unparalleled speed. The standard Envent TFS1 measu... Read More
ENVENT MODEL TFS2 Image
ENVENT MODEL TFS2
The TFS2 is an all optical analytical platform using a Precisive TFS (tunable filter spectroscopy) infrared sensor from MKS Instruments. The TFS2 offers a multi-component gas analysis at unparalleled speed. T... Read More
ENVENT MODEL TFSP Image
ENVENT MODEL TFSP
The TFSP is an all optical analytical platform using a Precisive TFS (tunable filter spectroscopy) infrared sensor from MKS Instruments. The TFSP offers a multi-component gas analysis at unparalleled speed. T... Read More
Oil Spill Sensors
ROW Exd Oil Detector for Hazardous Areas Image
ROW Exd Oil Detector for Hazardous Areas
ROW Exd oil spill detector is designed to detect oil contamination in the hazardous areas where ignitable concentrations of flammable gases, vapors or mists often exist. ... Read More
ROW Algae Autonomous Non-Contact Sensor for Water Qqality Monitoring Image
ROW Algae Autonomous Non-Contact Sensor for Water Qqality Monitoring
Early warning system for harmful algal blooms by determination of cholophyll-a concentration changes. WHAT ARE ALGAL BLOOMS AND WHY MON... Read More
ROW Dom Autonomous Non-Contact Sensor for Water Quality Monitoring Image
ROW Dom Autonomous Non-Contact Sensor for Water Quality Monitoring
Early warning system for determination of water treatment by monitoring of dissolved organic matters (DOM) concentration changes. MONIT... Read More
Fluo Imager Compact Image
Fluo Imager Compact
Fluo-Imager™ is a multipurpose spectral analyser aimed at the express detection and identification of organic compounds in liquid samples. Its operation is based on the techniques of spectral fluorescence sign... Read More
Fluo Imager Portable Image
Fluo Imager Portable
Fluo-Imager™ is a multipurpose spectral analyser aimed at the express detection and identification of organic compounds in liquid samples. Its operation is based on the techniques of spectral fluorescence sign... Read More
ROW Early Detection System for Oil On Water Image
ROW Early Detection System for Oil On Water
ROW Detects: Motor oils, turbine oils, vegetable oils, fuel oils, marine diesel oils, crude oils, heating oils, lube oils, hydraulic oils, gas oils, motor oils, mineral oils ... Read More
Ignition Quality Analyzers (IQT)
Cetane Number Ignition Quality Tester (IQT™) Image
Cetane Number Ignition Quality Tester (IQT™)
Laboratory ignition quality measurement for refineries, specification test laboratories and research applications Specifica... Read More
Pipeline Corrosion Tracking Coupons & Analyzers
CORROSION COUPONS Image
CORROSION COUPONS
Accurate monitoring of corrosion rates in any environment is critical when viewed in terms of the maintenance and repair costs associated with corrosion and material failure. Test coupons provide an inexpensive ... Read More
COUPON HOLDERS Image
COUPON HOLDERS
Fixed (Pipe Plug) Coupon Holders Biolab carries a variety of standard pipe plug coupon holders for flat and cylind... Read More
WELDED COUPONS Image
WELDED COUPONS
Corrosion rates can vary between welded and non-welded metals... Read More
STRESSED COUPONS Image
STRESSED COUPONS
Stress corrosion cracking occurs when tensile stress combines with a corrosive environment to attack a material. Testing for this type of corrosion is critical in storage tanks, pressure piping, and vessels commonly used in chemical process... Read More
TEST RACKS Image
TEST RACKS
Biolab offers test racks used to mount coupons and secure them directly to operating equipment or within a process system. Test racks make it easy to evaluate how corrosion would effect differing alloys and mate... Read More
INSULATORS, WASHERS & SPACERS Image
INSULATORS, WASHERS & SPACERS
Biolab makes a variety of insulators, washers, and spacers used to isolate test specimens. We also make insulator kits (R5102) that contain an assortment of washers, screws, nuts, and stems. These kits are designed for field use when a vari... Read More
ELECTRODES Image
ELECTRODES
Biolab provides electrodes compatible with our various probes and instruments, as well as those of most other major manufacturers. Other electrodes not shown here are also available. Electrodes are made from a variety of materials (see Allo... Read More
DATA LOGGER Image
DATA LOGGER
Digital, hand-held, menu-driven corrosion meters that take probe measurements and store the data to be later downloaded to a computer for analysis. Data loggers used to continuously monitor probes in remote locations... Read More
